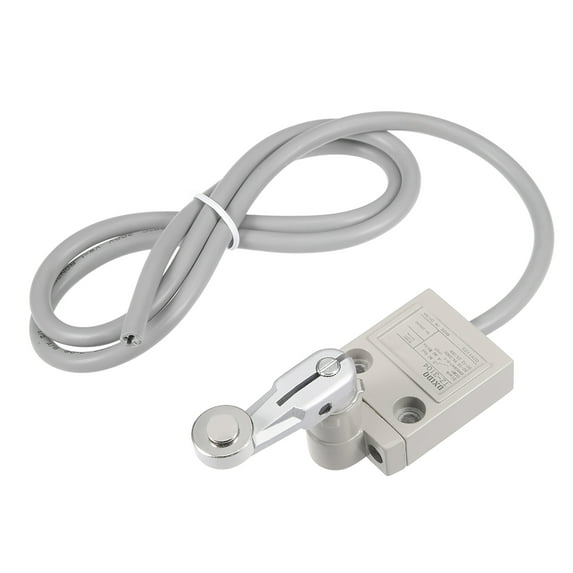

Uxcell TZ-3104 3108 Momentary Compact Prewired Roller Lever Arm Limit Switches

Specification:
Product Name: Limit Switch
Model: TZ-3104 (3108)
Actuator Type: Metal Wheel Roller Lever Type
Rated Voltage:
AC-15: 5A 250V
DC-12: 2A 30V
Contact Configuration: COM-Black, NC-Red, NO-White, E-Green/Yellow
Wire Length: ~1M
Body Size: 48.5 x 40 x 16mm (L*W*T)
Mounting Hole Size: 5.2mm (D)
Mounting Hole Distance: 25mm



Operating Characteristics:
OF max.: 580gf (5.69N)
RF min.: 150gf (1.47N)
PT max.: 25°
OT min.: 40°
MD max.: 3°


Description:

• Double circuit limit switch with build-in double reed mechanism.
• Aluminium alloy shell, strong rigid construction.
• Smooth operation with OT.
• Prewired design.
• This Unique Bargains Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
