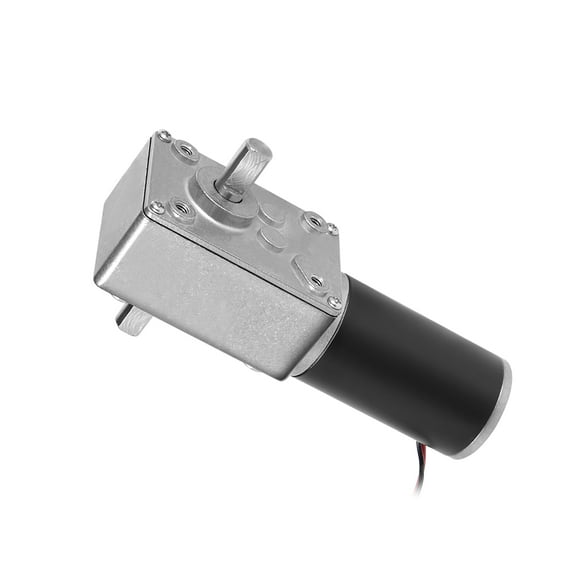

DC12V Double Shaft Worm Gear Motor 250RPM High Torque Speed Reduction

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive andnegative be changed. It is also have addition two characteristics:

1 With self-locking, the output shaft can not rotation when switch off, that is self-locking.

2 Gearbox output shaft and motor shaft are come to be a rectangle, it is widely used in various of occasions that require special installation size.

Specification:

Rated Voltage: 12V DC;

No-Load Speed: 250 RPM;

Output Shaft: 8mm x 15mm/1.22inch x 2.24inch(D*L);

DC Motor Body Dimensions: 31 x 57mm/ 1.22inch x 2.24inch(D*L);

Gear Box Dimensions: 58 x 40 x 35mm/ 2.28inch x 1.57inch x 1.37inch(L*W*H);

Wire Length : 20cm;

Applications: Boat, Fan, Home Appliance, BBQ, Machinery and equipment, automation instruments, electric curtain, stage lighting, counter, faucet, safe, wet towel dispenser, vending machines, automatic monitoring and other modern art.

Package Contents:1 X Worm Motor
