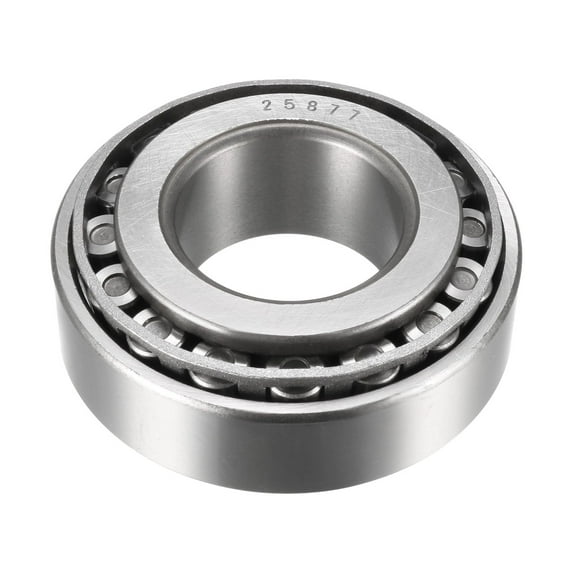

25877/25821 Tapered Roller Bearing Cone and Cup Set 1.375" Bore 2.875" Outer Diameter 0.9375" Width

Description:

• Single Row Tapered Roller Bearings are designed to accommodate combined loads.
• These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and axial loads evenly across the roller.
• The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
• The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
• This single tapered roller bearing is for use in high-load, moderate-speed applications that include axle systems and conveyor systems.

Specification:

Cone Model: 25877

Cup Model: 25821

Material: Chrome Steel

Bore Diameter: 34.925mm / 1.375"

Outside Diameter: 73.025mm / 2.875"

Total Thickness: 23.813mm / 0.9375"

Dynamic Load Rating (Cr): 8510N

Static Load Rating (Cor): 97400N
