OEM Grade Port Side Piston Kit Standard Size Compatible with 2014-2020 Evinrude 150HP 175HP 200HP 225HP 250HP 300HP V6 E-TEC G2 3.4L Outboard 3.854 Bore 5005910 5006532

Port Side Piston Kit Standard Compatible with 2014-2020 Evinrude 150HP-300HP V6 E-TEC G2 3.4L Outboard 3.854" Bore

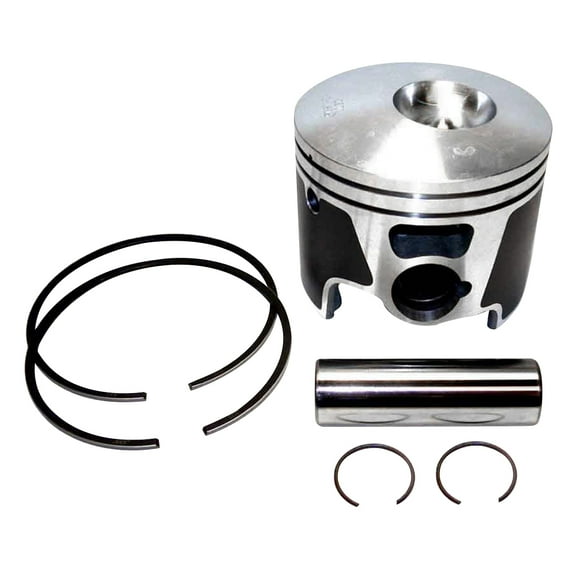

Direct replacement standard size port side piston kit for 2014 through 2020 Evinrude V6 E-TEC G2 3.4L direct injection 2-stroke outboard motors with 3.854" standard bore. Kit includes cast aluminum piston machined to 3.854" bore, piston ring set, wrist pin, and circlip retainers for a complete single-cylinder rebuild. Port side only — order matching starboard piston kit separately for complete rebuild.

OEM CROSS-REFERENCE PART NUMBERS:
• 5005910 (port standard piston)
• 5006532 (supersedes 5005910)
• 5006737 (latest supersession)
• 5005911 (starboard reference)
• 326764 (wrist pin)
• 326765 (circlip retainers)

SPECIFICATIONS:
• Type: Port Side Piston Kit with Rings
• Size: Standard
• Bore: 3.854" Standard
• Engine: V6 E-TEC G2 3.4L Direct Injection 2-Stroke
• Horsepower: 150HP-300HP
• Side: Port (Left)
• Kit Contents: Piston, Ring Set, Wrist Pin, Circlip Retainers
• Material: Cast Aluminum

APPLICATIONS:
• 150HP V6 E-TEC G2 (2014-2020)
• 175HP V6 E-TEC G2 (2015-2020)
• 200HP V6 E-TEC G2 (2014-2020)
• 225HP V6 E-TEC G2 (2015-2020)
• 250HP V6 E-TEC G2 (2014-2020)
• 300HP V6 E-TEC G2 (2014-2020)

NOTES:
• This is the PORT side piston only — order matching starboard piston separately
• Kit is for ONE cylinder — V6: order 3 port + 3 starboard pistons

⚠️ Verify OEM part number from your original engine before ordering.
