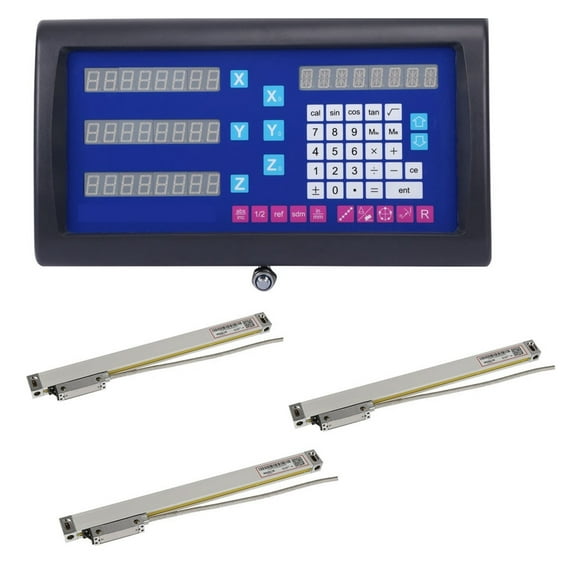

Lathe Mill Kit ES-17 3 Axis Digital Readout DRO + 3pcs TTL GS10 0.005mm Linear Scale Optical Encoder Line
(No ratings yet)
Key item features
- Kit ES-17 3 axis digital readout DRO and 3pcs GS10 high precision linear scale
- Package includes
- 1 PCS X ES-17
- 3 PCS X GS-10 scale
- A set of mounting accessories
- Manual
- Membrane Seal diaphragm touch keys (Water/Coolant/Dust Proof)
- Plastic Casing
- Power Supply Voltage: AC 100V ~230 V,50 Hz ~ 60 Hz (Automatic Detection)
- Power Consumption: 25VA
- Input signal: TTL square wave.
- Frequency multiplication: 4x.
- Input signal frequency: >100KHz
- Advanced Optical Measuring System: The slide carrier of the GS series scale uses a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market. The glass grating slideways are lapped and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.
- Double Seals Design: The plastics seals of GS series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability. Carefully designed lips geometry offer low slide resistance.
- 100% calibration: All glass grating transducers are individually inspected and calibrated by our in-house calibrator to ensure accuracy comply 100% with the specifications.
- ASIC Interpolator: ASIC Interpolator is built-in inside the GS Series Glass grating linear transducer to facilitate increased resolution of the grating .All frequency multiplication is implemented 100% by hardware phase shifting inside the ASIC interpolator to minimize the real time measurement error. Because all resistor ladders for phase shifting are constructed with same piece of Semiconductor inside the ASIC which have same temperature coefficient. therefore. Error drift caused by environmental temperature change is minimized.
- Industrial Standard Output Signal Interface: The industrial standard TTL &RS422A digital signal output are available for user's choice User can choose the most suitable signal inter face according to their cost, power & EMI requirements Standard 9 pin DSUB9 and DIN7 7pin connectors are available for users choice.
- Basic functions of Mill and Lathe
- clear zero
- centering(1/2)
- in/mm
- abs/inc
- power off memory
- 199 subdatum
- ref memory
- Advanced Functions
- built in calculator
- PCD pitch circle diameter
- LHOLE line hole positioning
- INCL inclined machining
- SHRINK shrinkage calculation
- R function (simple R and smooth R)
- Linear error compensation
- Advanced Functions of Easson Lathe DRO
- Linear error compensation
- XZ axes summation
- Selling Point
- Glass Scales Specification (GS-10 model)
- High Precision Etched glass
- Resolution : 5um (0.005mm).0002 inch
- Signal : TTL SQUARE WAVE
- Grating pitch: 0.02mm (50LP/min)
- Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
- Reference marks at interval of 50mm
- Response Speed: 60m/min or 40ins/sec
- Cable length: 3 Meter (about 9 feet)
Specs
- BrandEugene Color
- Has written warrantyNo
Current price is USD$955.61
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Ships to
Arrives between May 22 - May 27
|
Sold and shipped by VigorMetric
3.0526315789473686 stars out of 5, based on 19 seller reviews(3.1)19 seller reviews
Free 30-day returns
About this item
Product details
Professional design, beautiful appearance generous, counts the frequency response is fast and powerful.
Die-casting alloy shell, the surface electric pensu processing, dustproof wear-resisting, good shielding.
Professional design, independent power supply, to adapt to the range, high stability, strong anti-jamming capability.
Power supply and signal anti-interference ability, and durable panel of buttons, change is simple and convenient.
Directly on the digital table for functional operation functions such as sine, cosine, tangent function, convenient
- Kit ES-17 3 axis digital readout DRO and 3pcs GS10 high precision linear scale
- Package includes
- 1 PCS X ES-17
- 3 PCS X GS-10 scale
- A set of mounting accessories
- Manual
- Membrane Seal diaphragm touch keys (Water/Coolant/Dust Proof)
- Plastic Casing
- Power Supply Voltage: AC 100V ~230 V,50 Hz ~ 60 Hz (Automatic Detection)
- Power Consumption: 25VA
- Input signal: TTL square wave.
- Frequency multiplication: 4x.
- Input signal frequency: >100KHz
- Advanced Optical Measuring System: The slide carrier of the GS series scale uses a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market. The glass grating slideways are lapped and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.
- Double Seals Design: The plastics seals of GS series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability. Carefully designed lips geometry offer low slide resistance.
- 100% calibration: All glass grating transducers are individually inspected and calibrated by our in-house calibrator to ensure accuracy comply 100% with the specifications.
- ASIC Interpolator: ASIC Interpolator is built-in inside the GS Series Glass grating linear transducer to facilitate increased resolution of the grating .All frequency multiplication is implemented 100% by hardware phase shifting inside the ASIC interpolator to minimize the real time measurement error. Because all resistor ladders for phase shifting are constructed with same piece of Semiconductor inside the ASIC which have same temperature coefficient. therefore. Error drift caused by environmental temperature change is minimized.
- Industrial Standard Output Signal Interface: The industrial standard TTL &RS422A digital signal output are available for user's choice User can choose the most suitable signal inter face according to their cost, power & EMI requirements Standard 9 pin DSUB9 and DIN7 7pin connectors are available for users choice.
- Basic functions of Mill and Lathe
- clear zero
- centering(1/2)
- in/mm
- abs/inc
- power off memory
- 199 subdatum
- ref memory
- Advanced Functions
- built in calculator
- PCD pitch circle diameter
- LHOLE line hole positioning
- INCL inclined machining
- SHRINK shrinkage calculation
- R function (simple R and smooth R)
- Linear error compensation
- Advanced Functions of Easson Lathe DRO
- Linear error compensation
- XZ axes summation
- Selling Point
- Glass Scales Specification (GS-10 model)
- High Precision Etched glass
- Resolution : 5um (0.005mm).0002 inch
- Signal : TTL SQUARE WAVE
- Grating pitch: 0.02mm (50LP/min)
- Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
- Reference marks at interval of 50mm
- Response Speed: 60m/min or 40ins/sec
- Cable length: 3 Meter (about 9 feet)
