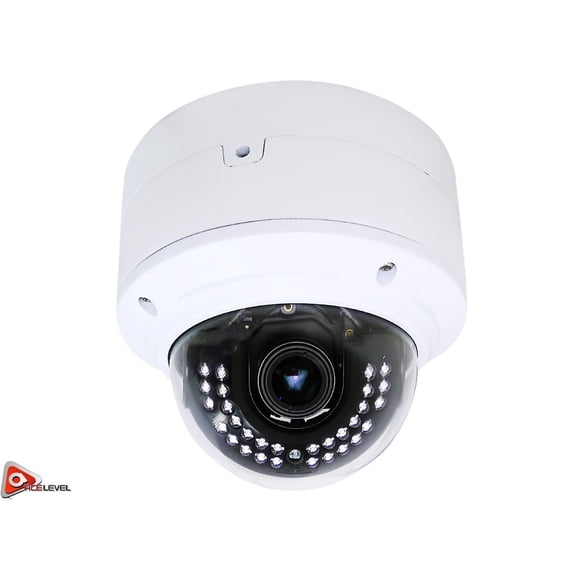

Acelevel, H.265, 5MP IP IR Vandalproof Dome Camera

Camera Features

• Image Resolution: 2592 x 1944
• Electronic Shutter: 1/25s ~ 1/100000s
• Mini. Illumination: 0 Lux（IR LED ON）
• Video Output: BNC x 1
• Focal Length: 3.6~10mm Vari-Focal
• Day / Night: ICR infrared filter
• Noise Reduction: 2D / 3D Noise Reduction
• WDR: DWDR
• Mount Type: Φ14

Video & Audio

• Frame Rate: 5MP (1~30fps) / 2560 x 1440 (1~30fps) / 1080P (1~30fps) / 720P (1~30fps)
• Bit Rate: 16Kbps ~ 40Mbps
• ROI  Supports ROI Configuration for each stream independently.
• Image Settings: ROI、Brightness、Chroma、Saturation、Contrast、WDR、Sharpness、Noise Reduction（Via IE and client end）
• Audio In: 1CH
• Audio Out: 1CH
• Compression  H.265 / MJPEG
• PTZ Mode  RS485 x 1

Display

• Resolution: 5MP（2304x1296), 1080P（1920×1080), 720P（1280×720 ), D1, CIF, 480x240
• Recording: Encode  VBR/CBR
• Quality VBR 5 level / CBR no limit

Alarm

• Alarm In: 1CH
• Alarm Out: 1CH

Network

• Ethernet: RJ45
• Remote Connections: IE browser、CMS remote control
• PoE Ports Supports
• Protocol: TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP

Storage

• Storage  Supports TF card ( Max. 64GB / TF card local storage / Remote storage )
• Auxiliary Interface
• RS485: Yes

General

• Power Consumption: ≤3W / ≤5.5W ( with IR On )
• Working Environment: -20℃  ~ 50℃，10% ~ 90%  humidity
