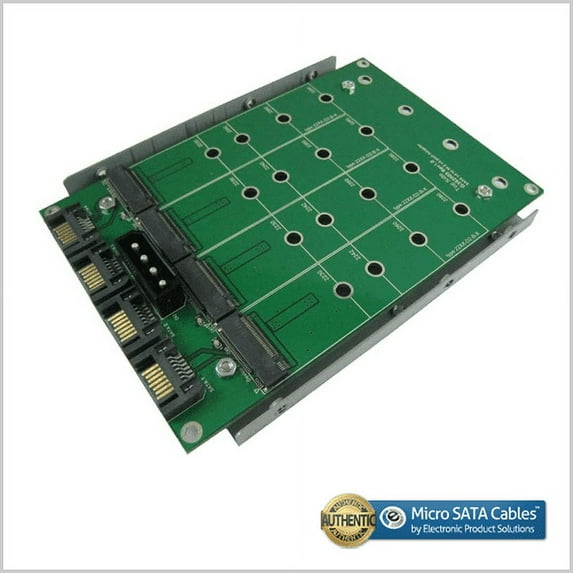

M.2 SATA SSD x 4 to SATA III x 4 Port Adapter with 3.5 Inch Metal Frame

M.2 (SATA) SSD x 4 to SATA III x 4 Port Adapter with 3.5 Inch Metal Frame

The unit is SATA III x4 port to M.2(NGFF)x4 port SSD adapter, providing four 7pin SATA connector on the host connection and four 67pin B key M.2 connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux and Unix. The adapter allows the installation of SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices.

Features:

• Fully compliant with SATA revision 3.1
• Fully compliant with PCI Express M.2 Specification Version 1.0
• PWM Power IC / 1.4MHz 5.5V synchronous buck converter
• M.2 SSD input voltage: 3.3V ±5%, input max. current: 3A
• Data transfer rate: 6Gb/s bandwidth

Supports the following form factor M.2(NGFF) SSD:

• Type 2230-D2-B-M: 30mm(L) x 22mm(W)
• Type 2242-D2-B-M: 42mm(L) x 22mm(W)
• Type 2260-D2-B-M: 60mm(L) x 22mm(W)
• Type 2280-D2-B-M: 80mm(L) x 22mm(W)

Supports Storage Device:

• Intel 530 Series M.2 SSD & Pro 1500 Series SSD
• Sandisk X110 M.2 SSD & U110 M.2 SSD
• Micron M500 Series M.2 SSD & compatible Storage

Application:

• Desktop PC
• Internet Appliances, Kiosks
• Industrial Computers
• Routers, Firewalls

Micro SATA Cables PN # NGFF-3.5-4PORT
