Piston Kit .010 Over with Rings Compatible with 1977-1989 Chrysler Force Inline 4-Cylinder 105HP-150HP 2-Stroke Outboard Motor 3.510 Bore 818139A3 700-819690A1 326764

Piston Kit .010 Oversize Compatible with 1977-1989 Chrysler Force 105HP-150HP Inline 4-Cylinder Outboard 3.510" Bore

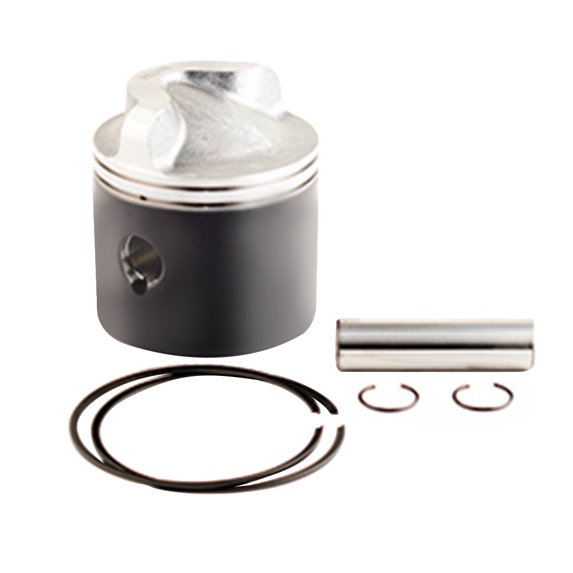

Direct replacement .010 oversize piston kit for 1977 through 1989 Chrysler and Force inline 4-cylinder 2-stroke outboard motors with 3.500" standard bore. Fits 105HP through 150HP models. Kit includes cast aluminum piston machined to 3.510" bore (.010 oversize over 3.500" standard), piston ring set, wrist pin, and circlip retainers for a complete single-cylinder rebuild. Symmetrical piston design fits all cylinders — order 4 kits for complete 4-cylinder rebuild.

OEM CROSS-REFERENCE PART NUMBERS:
• 818139A3 (standard reference)
• 700-819690A2
• 700-819690A1
• 326764 (wrist pin)
• 326765 (circlip retainers)

SPECIFICATIONS:
• Type: Piston Kit with Rings
• Size: .010 Oversize
• Bore: 3.510" (.010 oversize over 3.500" standard)
• Engine: Inline 4-Cylinder 2-Stroke Crossflow
• Horsepower: 105HP-150HP
• Piston Type: Symmetrical (fits all cylinders)
• Kit Contents: Piston, Ring Set, Wrist Pin, Circlip Retainers
• Material: Cast Aluminum

APPLICATIONS:
• 105HP Chrysler 4-Cylinder (1977-1983)
• 120HP-140HP Chrysler 4-Cylinder (1977-1983)
• 135HP-150HP Chrysler/Force 4-Cylinder (1984-1989)

NOTES:
• Symmetrical piston — same piston fits all cylinders
• Order 4 kits for complete inline 4-cylinder engine rebuild

⚠️ Verify OEM part number from your original engine before ordering.
