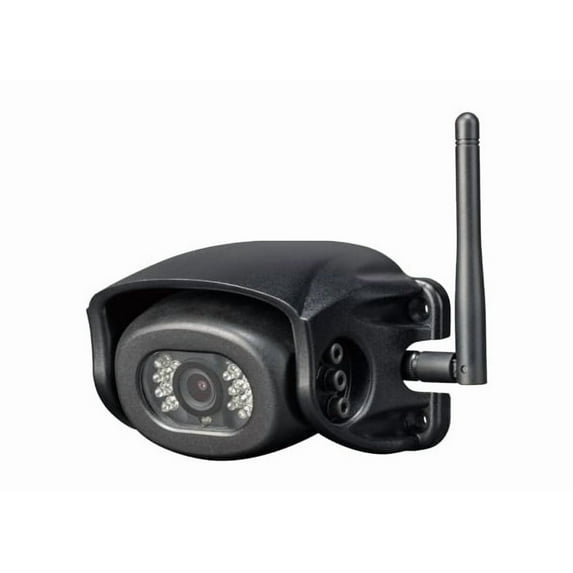

VOYAGER WIRELESS WISIGHT 2.0 CAMERA

Voyager WVH100 Digital Wireless WiSight RV BackUp Observation Camera with Built-In Microphone for Pre-Wired Vehicles

• WiSight Digital Wireless Technology
• Camera works with WVOM541AP and the WVOM43 monitors (sold separately)
• High-performance color optics, Waterproof
• CMOS sensor, IR LED low-light assist
• 12VDC, Integrated Audio Microphone, Wide-angle view

• Manufacturer: ASA Electronics
• Brand: ASA Electronics
• Model: Voyager WVH100 Digital Wireless WiSight RV Observation Camera
• Item Weight: 15.1 ounces
• Product Dimensions: 8 x 3.75 x 3.5 inches
• Item model number: WVH100
• Manufacturer Part Number: WVH100
• Voltage: 12 Volts

Voyager WVH100 Digital Wireless WiSight RV Observation Camera with built-in Microphone for Pre-wired Vehicles

This Voyager Camera System is made specifically for RVs with our factory-installed Voyager WiSight Technology prewire plate. The plate is located on the back of the trailer and can be removed to reveal a 12volt DC socket that is already connected to the existing wiring. The camera included in this system plugs directly into the pre-wired socket and is mounted with the same screws. Our patented WiSight Technology allows the camera to transmit to your new or existing Voyager monitor in real time, even at freeway speeds.

Key Features:

• WiSight Digital Wireless Technology
• Camera works with WVOM541AP and the WVOM43 monitors (sold separately)
• High-performance color optics
• CMOS sensor
• IR LED low-light assist
• Waterproof
• Integrated Audio Microphone
• Wide-angle view
• 12VDC

Specifications:

• Power System: 12VDC
• Operating Voltage Range: 10 18V
• Power Consumption (MAX): 230mA
• Operating Temperature Range: -20°F to 65°F
• Storage Temperature Range: -30°F to 85°F
• Operating Relative Humidity: 100%
• Waterproof Rating: IPX6
• Overall Dimensions: 5.52" x 3.0" x 2.82"
• Product Weight (unpackaged): 10.56 oz
• Video Output Signal Format: NTSC
• Video Output Signal Level: 1.0V p-p ; 75?
• Audio: Microphone
• Sensor: 1/3" CMOS
• Sensitivity: 0 Lux
• Image Orientation: Mirror (Reversed)
• Resolution: 380 Lines
• View Angles: 135°(D) 102°(H) 72°(V)
