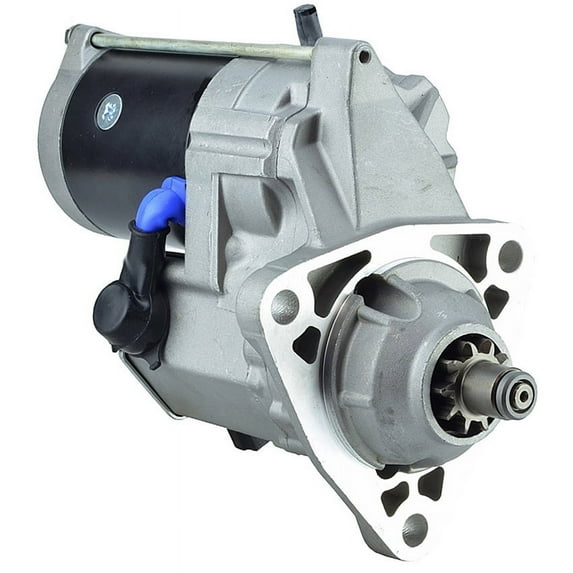

New 24V Starter Fits Cummins Isl Industrial Applications 4280000060 Tg4280800060
(No ratings yet)
Check if this fits your vehicle
Protect your purchase
Get peace of mind for pennies a day!
Add Walmart Protection Plan
Key item features
- Rareelectrical Compatible With Cummins, Denso
- Cummins Isl Engine Applications: • This Starter Fits Cummins Isl 8.9L Engine Applications • Verify Cummins 3958033 On Your Original Starter Before Ordering Cummins Isl 8.9L Engine Specifications: • Configuration: 8.9L Inline-6 Turbocharged Aftercooled Diesel • Displacement: 8.9L / 8849Cc / 543Ci • Bore X Stroke: 114Mm X 144.5Mm (4.49" X 5.69") • Compression Ratio: 16.5:1 To 17.3:1 • Power: 300-425Hp @ 2100 Rpm (Varies By Rating) • Torque: 811-1180 Lb-Ft @ 1300-1500 Rpm • Construction: Cast Iron Deep-Skirt Block / 4 Valves Per Cylinder • Fuel System: Hpcr (High Pressure Common Rail) / Bosch • Forged Steel 8-Counterweight Crankshaft • Replaceable Mid-Stop Wet Liners • Weight: ~1635 Lbs (Engine Only) Typical Isl Applications: • Transit Buses / Motorcoaches / School Buses • Medium-Duty Trucks: Dump / Refuse / Box / Tanker • Motorhomes / Rvs (Up To Isl 425Hp Rating) • Fire And Emergency Vehicles • Vocational / Construction Equipment Notes: • Isl Launched 1999 For Municipal Buses / Isl9 / L9 Successor Designations • Stroked Version Of The Cummins C8.3 Platform • 500,000-Mile Service Life When Properly Maintained
- Oem Part Numbers: • Cummins: 3958033 • Cummins: 3988033 • Denso: 428000-0060 / 4280000060 • Denso: Tg428080-0060 / Tg4280800060 • Denso: 428080-0060 • Other: 246-30234 Specifications: • Type: Osgr (Offset Gear Reduction) • Voltage: 24V • Power: 7.8Kw • Rotation: Cw (Clockwise) • Teeth: 10 • Gear Od: 1.591In / 40.4Mm • Length: 9.508In / 241.5Mm • Mounting Ear 1: 13.8Mm Unthreaded • Mounting Ear C-To-C: 4.969In / 126.2Mm • Registry Od: 3.622In / 92Mm • B+ & B-: M12 Studs / Motor: M10 Stud • S Terminal: M5 Threaded Tab Inside Plastic Housing • Weight: 24.34 Lbs / 11.07 Kg • Condition: New Engine Application: • Cummins Isl / Isl9 / L9 — 8.9L 543Ci Inline-6 Turbodiesel • 300-425Hp / Buses, Trucks, Motorhomes, Emergency Vehicles
- Source: Aftermarket
- One Year Manufacturer's Warranty.
Specs
- Manufacturer part number19878N2
- BrandRareelectrical
- Vehicle fitment typeSpecific
- Volts24 V
- Weight26 lb
- Dimensions12.00 x 9.00 x 6.00 in
Current price is USD$337.23
Price when purchased online
- Free shipping
Free 30-day returns
Walmart Protection Plan by Allstate
(Only one option can be selected at a time)
How do you want your item?
Ships to
Arrives by Tue, May 19
|
Sold and shipped by Rareelectrical
4.429872495446266 stars out of 5, based on 549 seller reviews(4.4)549 seller reviews
Free 30-day returns
About this item
Product details
CUMMINS ISL — 8.9L INLINE-6 TURBODIESEL:
• ISL 8.9L 8849cc 543ci Turbocharged Aftercooled Diesel
• 300-425HP @ 2100 rpm / 811-1180 lb-ft @ 1300-1500 rpm
• Originally launched 1999 — stroked version of C8.3 platform
ISL ENGINE SPECIFICATIONS:
• 114mm Bore x 144.5mm Stroke (4.49" x 5.69")
• 16.5-17.3:1 Compression / Cast Iron Deep-Skirt Block
• 4 Valves Per Cyl / HPCR Fuel System / Forged Steel Crank
• Replaceable Mid-Stop Wet Liners / ~1635 lbs Engine Weight
• 500,000-mile service life when properly maintained
TYPICAL ISL APPLICATIONS:
• Transit Buses / Motorcoaches / School Buses
• Medium-Duty Trucks: Dump / Refuse / Box / Tanker
• Motorhomes / RVs (ISL 425HP rating) / Fire Vehicles
OEM PART NUMBERS:
• Cummins: 3958033 / 3988033
• Denso: 428000-0060 / 4280000060 / TG428080-0060 / TG4280800060
• Other: 428080-0060 / 246-30234
STARTER SPECIFICATIONS:
• Type: OSGR / Voltage: 24V / Power: 7.8kW / Rotation: CW
• Teeth: 10 / Gear OD: 1.591in / 40.4mm / Length: 9.508in / 241.5mm
• Mounting: 13.8mm Unthreaded / C-to-C: 126.2mm / Registry: 92mm
• B+/B-: M12 Studs / Motor: M10 / S: M5 Tab / Wt: 24.34 lbs
Cummins ISL Starter — 24V OSGR 7.8kW 8.9L Inline-6 Turbodiesel:
Premium aftermarket Denso OSGR starter for Cummins ISL 8.9-liter inline-6 turbocharged aftercooled diesel engines rated from 300 to 425HP. The ISL — a stroked version of the C8.3 — features 114mm bore and 144.5mm stroke for 543ci displacement with cast iron deep-skirt block, 4 valves per cylinder, and Bosch HPCR fuel injection. Used in transit buses, motorcoaches, medium-duty trucks, motorhomes, and fire vehicles. Delivers 7.8kW cranking power with 10-tooth CW-rotation pinion. M12 B+/B- studs with M10 motor stud and M5 S terminal tab. Registry OD 92mm. Weighs 24.34 lbs.
⚠️ IMPORTANT: Verify OEM part number before ordering to ensure proper fitment.
• ISL 8.9L 8849cc 543ci Turbocharged Aftercooled Diesel
• 300-425HP @ 2100 rpm / 811-1180 lb-ft @ 1300-1500 rpm
• Originally launched 1999 — stroked version of C8.3 platform
ISL ENGINE SPECIFICATIONS:
• 114mm Bore x 144.5mm Stroke (4.49" x 5.69")
• 16.5-17.3:1 Compression / Cast Iron Deep-Skirt Block
• 4 Valves Per Cyl / HPCR Fuel System / Forged Steel Crank
• Replaceable Mid-Stop Wet Liners / ~1635 lbs Engine Weight
• 500,000-mile service life when properly maintained
TYPICAL ISL APPLICATIONS:
• Transit Buses / Motorcoaches / School Buses
• Medium-Duty Trucks: Dump / Refuse / Box / Tanker
• Motorhomes / RVs (ISL 425HP rating) / Fire Vehicles
OEM PART NUMBERS:
• Cummins: 3958033 / 3988033
• Denso: 428000-0060 / 4280000060 / TG428080-0060 / TG4280800060
• Other: 428080-0060 / 246-30234
STARTER SPECIFICATIONS:
• Type: OSGR / Voltage: 24V / Power: 7.8kW / Rotation: CW
• Teeth: 10 / Gear OD: 1.591in / 40.4mm / Length: 9.508in / 241.5mm
• Mounting: 13.8mm Unthreaded / C-to-C: 126.2mm / Registry: 92mm
• B+/B-: M12 Studs / Motor: M10 / S: M5 Tab / Wt: 24.34 lbs
Cummins ISL Starter — 24V OSGR 7.8kW 8.9L Inline-6 Turbodiesel:
Premium aftermarket Denso OSGR starter for Cummins ISL 8.9-liter inline-6 turbocharged aftercooled diesel engines rated from 300 to 425HP. The ISL — a stroked version of the C8.3 — features 114mm bore and 144.5mm stroke for 543ci displacement with cast iron deep-skirt block, 4 valves per cylinder, and Bosch HPCR fuel injection. Used in transit buses, motorcoaches, medium-duty trucks, motorhomes, and fire vehicles. Delivers 7.8kW cranking power with 10-tooth CW-rotation pinion. M12 B+/B- studs with M10 motor stud and M5 S terminal tab. Registry OD 92mm. Weighs 24.34 lbs.
⚠️ IMPORTANT: Verify OEM part number before ordering to ensure proper fitment.
- Rareelectrical Compatible With Cummins, Denso
- Cummins Isl Engine Applications: • This Starter Fits Cummins Isl 8.9L Engine Applications • Verify Cummins 3958033 On Your Original Starter Before Ordering Cummins Isl 8.9L Engine Specifications: • Configuration: 8.9L Inline-6 Turbocharged Aftercooled Diesel • Displacement: 8.9L / 8849Cc / 543Ci • Bore X Stroke: 114Mm X 144.5Mm (4.49" X 5.69") • Compression Ratio: 16.5:1 To 17.3:1 • Power: 300-425Hp @ 2100 Rpm (Varies By Rating) • Torque: 811-1180 Lb-Ft @ 1300-1500 Rpm • Construction: Cast Iron Deep-Skirt Block / 4 Valves Per Cylinder • Fuel System: Hpcr (High Pressure Common Rail) / Bosch • Forged Steel 8-Counterweight Crankshaft • Replaceable Mid-Stop Wet Liners • Weight: ~1635 Lbs (Engine Only) Typical Isl Applications: • Transit Buses / Motorcoaches / School Buses • Medium-Duty Trucks: Dump / Refuse / Box / Tanker • Motorhomes / Rvs (Up To Isl 425Hp Rating) • Fire And Emergency Vehicles • Vocational / Construction Equipment Notes: • Isl Launched 1999 For Municipal Buses / Isl9 / L9 Successor Designations • Stroked Version Of The Cummins C8.3 Platform • 500,000-Mile Service Life When Properly Maintained
- Oem Part Numbers: • Cummins: 3958033 • Cummins: 3988033 • Denso: 428000-0060 / 4280000060 • Denso: Tg428080-0060 / Tg4280800060 • Denso: 428080-0060 • Other: 246-30234 Specifications: • Type: Osgr (Offset Gear Reduction) • Voltage: 24V • Power: 7.8Kw • Rotation: Cw (Clockwise) • Teeth: 10 • Gear Od: 1.591In / 40.4Mm • Length: 9.508In / 241.5Mm • Mounting Ear 1: 13.8Mm Unthreaded • Mounting Ear C-To-C: 4.969In / 126.2Mm • Registry Od: 3.622In / 92Mm • B+ & B-: M12 Studs / Motor: M10 Stud • S Terminal: M5 Threaded Tab Inside Plastic Housing • Weight: 24.34 Lbs / 11.07 Kg • Condition: New Engine Application: • Cummins Isl / Isl9 / L9 — 8.9L 543Ci Inline-6 Turbodiesel • 300-425Hp / Buses, Trucks, Motorhomes, Emergency Vehicles
- Source: Aftermarket
- One Year Manufacturer's Warranty.
