Diode Dynamics 2015-2017 Fits Ford Mustang Switchback LED Boards USDM DD2115

Features

• Mustang 2015 Switchback LED Boards USDM
• Computer-designed LED boards for 2015-2017 Fits Ford Mustang headlights
• Adds sequencing amber signal to DRLs
• Two Epistar LEDs in place of each original white chip
• A huge increase in brightness, even in direct sunlight
• Engineered and manufactured in USA

What's Included In the Box:

• Two (2) sets of LED boards, left and right
• Two (2) waterproof drivers
• Two (2) input wire pigtails with T-taps
• Installation guide
• Quantity: Pair (Left and Right Side)
• Warranty: 3 year warranty
• 100 percent Satisfaction Guarantee

Fitment

• Note: These boards are not compatible with aftermarket (non-factory) headlamps
• Application: Front Turn Signal, DRL
• Make: Fits Ford
• Model: Mustang
• Years: 2015, 2016, 2017
• Electrical Compatibility: No electrical issues (tested and confirmed)
• DRL Function: Operates at full brightness for DRL

Specifications

• Operating Voltage: 9-16V
• Operating Temperature: -40C to 85C (-40F to 185F)
• Connector(s): JST Inline Connectors, T-Tap Inputs
• Driver Features: External, Waterproof, Linear Regulated
• Driver Dimensions: 2.5 Inch x 1.38 Inch x 0.88 Inch
• Materials: FR4 PCB
• Cooling: Passive, no heatsink

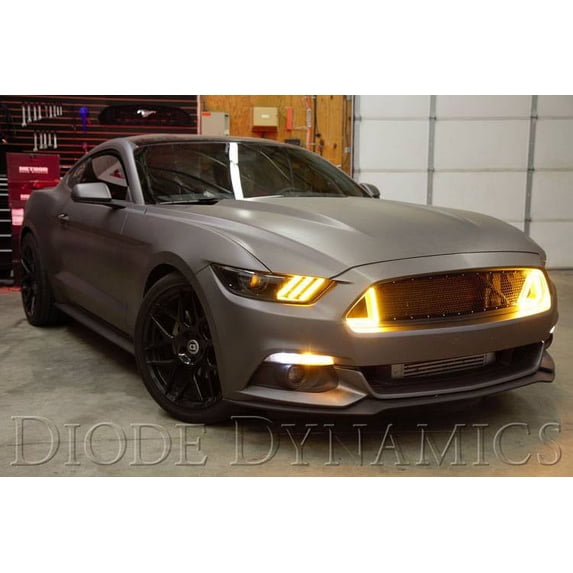

Time for an upgrade! From the factory, the Fits Ford Mustang has LED accents in the headlight that illuminate in a white color, for the parking light and DRL. Diode Dynamics replacement LED boards add a brighter DRL along with a sequential amber turn signal for a custom, yet functional look. Your order includes two sets of LED boards, one for each side of the vehicle.

Sequencing Turn Signal. These LED boards are a direct replacement for the factory ones, but have double the number of LEDs. They illuminate white for your parking lights and DRLs, with a dimmed power level at night. Anytime you hit your turn signal, they light up in a sequencing amber pattern, just like the factory tail lights, to indicate signaling. While the amber is extremely bright, we do not recommend disabling your factory turn signal.

USDM vs EU/AU. There's a few differences between Mustangs in different regions of the world, so we've developed two versions of the Switchback Sequencing kit to accommodate this. First, if you're in Europe or Australia, you probably know that your tribars aren't lit up at all! This kit will still fit directly in place - the mounting points are all there in your headlights, you're just missing the circuit boards.

The sequential function is also a bit different: The US-market Mustang has a slower blink rate, to leave time for the taillights to sequence across. The drivers with the USDM option are designed to match this slower blink rate. EU/AU Mustangs have a standard blink rate, so the sequencing is faster to accommodate this.

OEM-grade design. At Diode Dynamics, we work directly from OEM data, and use a 3D scanner, to develop precise replacement boards with identical mounting points and shape. Just remove the original boards, and ours will fit directly in place with correct alignment. You'll also see OEM design features, such as high-intensity automotive emitters, wire connectors, and serial numbers for quality assurance.

Works correctly, with no surprises. In 2014, Diode Dynamics was the first to make replacement circuit boards. Our goal is to make them work just like the factory system - except for added functionality! That means connecting to the factory DRL and running light signals for proper operation. This isn't as easy as it sounds -
