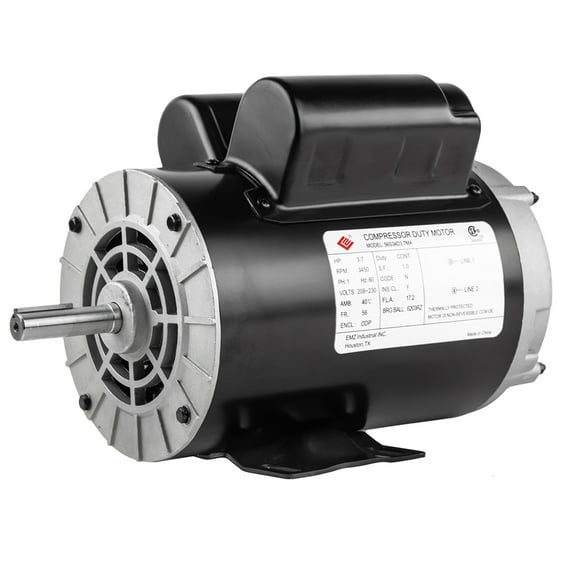

3.7 HP 3450 RPM Electric Motor Compressor Duty 56 Frame 1 Phase 5/8" Shaft 230 V

3.7 HP Electric Air Compressor Motor 3450 RPM 56 FrameBrand new 3.7 hp 230-volt compressor duty electric motor. This motor features a 56 frame with a 5/8" diameter shaft and is 3450 RPM. This is a non-reversible motor and features counter-clockwise (CCW) rotation facing the shaft. This is a high-quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications. Below is a full list of specifications.Specifications:• Open Drip Proof (ODP)• Single Phase• 3.7 HP• 3450 RPM• 60hz• 230 Volts• AMB 40 °C• Frame: 56• Duty: Cont. Compressor• Service Factor: 1.0• Full Load Amps: 17.2• Insulation Class: F• Non-Reversible, CCW Rotation Facing Shaft• Thermally Protected• Overall Length W/O Shaft: Approx 12"• Overall Length With Shaft: Approx 14-1/2"• Overall Height: Approx 8-5/8"• Overall Width: Approx 6-5/8"• Shaft Diameter: 5/8"• Shaft Length: 2-1/2"• Standard Size Keyway: 3/16"• Features Manual Reset Overload Protection
