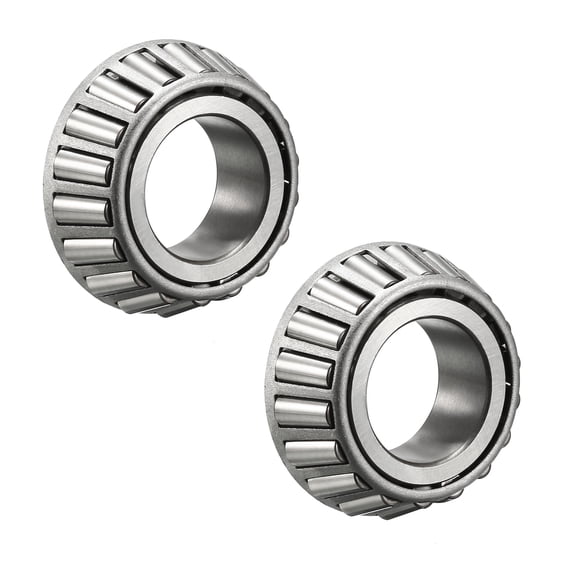

Tapered Roller Bearings 1.25-inches Bore Single Cone 02475 2

Description:

• Single cone with a stamped steel cage matches with a single cup (outer ring, sold separately) to assemble into a complete single tapered roller bearing, suitable for applications that support both radial and axial loads.
• These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and axial loads evenly across the roller.
• The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
• The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
• This single tapered roller bearing is for use in high-load, moderate-speed applications that include axle systems and conveyor systems.

Specification:

Model: 02475

Race Material: Chrome Steel

Cage Material: Stamping Steel

Bore Diameter: 31.75mm / 1.25"

Total Thickness (T): 22.225mm / 0.875"

Dynamic Load Rating (Cr): 63800N

Static Load Rating (Cor): 70200N
