Hero image 0 of QNAP TS-832X-8G 8 x Total Bays SAN/NAS Storage System - Tower, 0 of 4

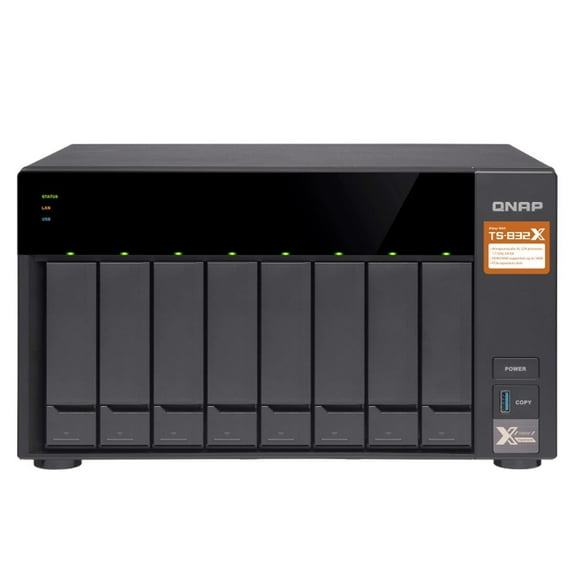

QNAP TS-832X-8G 8 x Total Bays SAN/NAS Storage System - Tower

(No ratings yet)

Key item features

Quad-core CPU and dual 10GbE SFP+ ports The TS-832X is equipped with an AnnapurnaLabs, an Amazon company Alpine AL-324 quad-core 1.7 GHz Cortex-A57 processor with 2GB/8GB DDR4 RAM (upgradable to 16GB) and supports SATA 6Gb/s. When processing AES 256-bit full NAS volume encryption, the TS-832X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. The TS-832X comes with two 10GbE SFP+ ports to fully support 10GbE high-speed networks, delivering a major speed increase for virtualization tasks, fast backup & restoration, and large-data applications.
Extend NAS functionality with two PCIe slots The TS-832X features two PCIe slots (1 x PCIe Gen2 x1, 1 x PCIe Gen2 x2) that allow for installing various expansion cards for greater application potential.
10GbE adapters Support lightning-fast throughput for bandwidth-demanding tasks such as fast backup/restoration for an ever-growing amount of data and virtualization.
QM2 M.2 SSD/10GbE PCIe cards Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.
USB 3.1 Gen 2 (10Gbps) cards USB 3.1 provides faster maximum speeds of 10Gb/s ? double that of USB 3.0 ? to greatly boost data transfer performance, allowing compatibility with newer, faster USB devices for transferring large-sized media files.
Wireless network cards Use WirelessAP Station along with a PCIe wireless network card (for example: QNAP QWA-AC2600) to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.
SSD caching and auto tiering enable optimized storage efficiency The TS-832X supports SSD caching to improve the workflow of random IOPS demanding applications. Qtier? Technology empowers the TS-832X with automatic tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. The new Qtier? 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.
Product Type SAN/NAS Storage System
Storage Number of Hard Drives Supported 8 Number of Hard Drives Installed No Total Hard Drive Capacity Installed Not Applicable Number of Solid State Drive Supported 8 Number of Solid State Drive Installed No Total Solid State Drive Capacity Installed Not Applicable Flash Memory Capacity 512MB
Processor & Chipset Processor Manufacturer Annapurna Labs Processor Type Alpine Processor Core Quad-core (4 Core) Processor Speed 1.7GHz
Memory Standard Memory 8GB
Network & Communication Ethernet Technology 10 Gigabit Ethernet
I/O Expansions Number of Total Expansion Bays 8 Number of 2.5"/3.5" Bays 8 Number of Total Expansion Slots 1 Expansion Slot Type PCI Express 2.0 x2 PCI Express x1 SFP+
Controller Type Serial ATA/600
RAID Supported Yes RAID Levels 0, 1, 5, 6, 10, 50, 60, Hot Spare
RAID Levels (SDE) 5 60 1 50 Hot Spare 10 0 6
Interfaces/Ports Number of USB 2.0 Ports 3 Number of USB 3.0 Ports 3 Network (RJ-45) Yes
Software Operating System QTS 4.3.4
Protocols DNS Telnet DLNA IPv6 FTPS FTP WEBDAV SSL/TLS AFP CIFS Bonjour HTTPS NFSv3 SMSC SSH DHCP SMB FXP SMTP AFP 3.3 SFTP LDAP iSCSI TFTP IPv4 UPnP PPTP TCP/IP HTTP CIFS/SMB DDNS RSync SNMP
Height 188.2mm Width 329.3mm Depth 279.6mm
Form Factor Tower
Weight (Approximate) 6.52 kg
Package Contents TS-832X-8G SAN/NAS Storage System 2 x Ethernet Cables 1 x Power Cord Flat Head Screw (for 3.5" HDD) Flat Head Screws (For 2.5" HDD) Quick Installation Guide (QIG)

Specs

Data storage
512 MB
Number of drive bays
8
Raid level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, JBOD
Brand
QNAP
Form factor
Tower
Inputs/Outputs
Inputs - RJ-45

Current price is $1,141.09

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

The powerful 8-bay, quad-core TS-832X includes two 10GbE SFP+ ports to fully support 10GbE high-speed networks at a budget price with maximized ROI. It is also an ARM-based NAS that supports Qtier? technology for efficient auto-tiered storage. The PCIe slots extend greater application potential, for example, by installing QNAP?s new PCIe wireless network card QWA-AC2600 the TS-832X is transformed into a convenient wireless base station that allows devices to directly connect to the NAS for easy access to its services and Internet connection. Dual 10GbE SFP+ ports for accelerating virtualization and massive file sharing. PCIe expandability allows for 10GbE adapters, QM2 cards, USB 3.1 10Gbps cards, or wireless network cards. Qtier? technology and SSD caching enable 24/7 optimized storage efficiency. Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks. Supports LXC and Docker® containers for rapidly deploying application services across platforms including the cloud, servers, and PCs. Secure private cloud supporting centralized storage, backup, sharing, disaster recovery, and storage capacity expansion.

Quad-core CPU and dual 10GbE SFP+ ports The TS-832X is equipped with an AnnapurnaLabs, an Amazon company Alpine AL-324 quad-core 1.7 GHz Cortex-A57 processor with 2GB/8GB DDR4 RAM (upgradable to 16GB) and supports SATA 6Gb/s. When processing AES 256-bit full NAS volume encryption, the TS-832X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. The TS-832X comes with two 10GbE SFP+ ports to fully support 10GbE high-speed networks, delivering a major speed increase for virtualization tasks, fast backup & restoration, and large-data applications.
Extend NAS functionality with two PCIe slots The TS-832X features two PCIe slots (1 x PCIe Gen2 x1, 1 x PCIe Gen2 x2) that allow for installing various expansion cards for greater application potential.
10GbE adapters Support lightning-fast throughput for bandwidth-demanding tasks such as fast backup/restoration for an ever-growing amount of data and virtualization.
QM2 M.2 SSD/10GbE PCIe cards Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.
USB 3.1 Gen 2 (10Gbps) cards USB 3.1 provides faster maximum speeds of 10Gb/s ? double that of USB 3.0 ? to greatly boost data transfer performance, allowing compatibility with newer, faster USB devices for transferring large-sized media files.
Wireless network cards Use WirelessAP Station along with a PCIe wireless network card (for example: QNAP QWA-AC2600) to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.
SSD caching and auto tiering enable optimized storage efficiency The TS-832X supports SSD caching to improve the workflow of random IOPS demanding applications. Qtier? Technology empowers the TS-832X with automatic tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. The new Qtier? 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.
Product Type SAN/NAS Storage System
Storage Number of Hard Drives Supported 8 Number of Hard Drives Installed No Total Hard Drive Capacity Installed Not Applicable Number of Solid State Drive Supported 8 Number of Solid State Drive Installed No Total Solid State Drive Capacity Installed Not Applicable Flash Memory Capacity 512MB
Processor & Chipset Processor Manufacturer Annapurna Labs Processor Type Alpine Processor Core Quad-core (4 Core) Processor Speed 1.7GHz
Memory Standard Memory 8GB
Network & Communication Ethernet Technology 10 Gigabit Ethernet
I/O Expansions Number of Total Expansion Bays 8 Number of 2.5"/3.5" Bays 8 Number of Total Expansion Slots 1 Expansion Slot Type PCI Express 2.0 x2 PCI Express x1 SFP+
Controller Type Serial ATA/600
RAID Supported Yes RAID Levels 0, 1, 5, 6, 10, 50, 60, Hot Spare
RAID Levels (SDE) 5 60 1 50 Hot Spare 10 0 6
Interfaces/Ports Number of USB 2.0 Ports 3 Number of USB 3.0 Ports 3 Network (RJ-45) Yes
Software Operating System QTS 4.3.4
Protocols DNS Telnet DLNA IPv6 FTPS FTP WEBDAV SSL/TLS AFP CIFS Bonjour HTTPS NFSv3 SMSC SSH DHCP SMB FXP SMTP AFP 3.3 SFTP LDAP iSCSI TFTP IPv4 UPnP PPTP TCP/IP HTTP CIFS/SMB DDNS RSync SNMP
Height 188.2mm Width 329.3mm Depth 279.6mm
Form Factor Tower
Weight (Approximate) 6.52 kg
Package Contents TS-832X-8G SAN/NAS Storage System 2 x Ethernet Cables 1 x Power Cord Flat Head Screw (for 3.5" HDD) Flat Head Screws (For 2.5" HDD) Quick Installation Guide (QIG)

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Data storage

512 MB

Number of drive bays

Raid level

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, JBOD

Brand

QNAP

Warranty

Warranty information

2 YEAR

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
