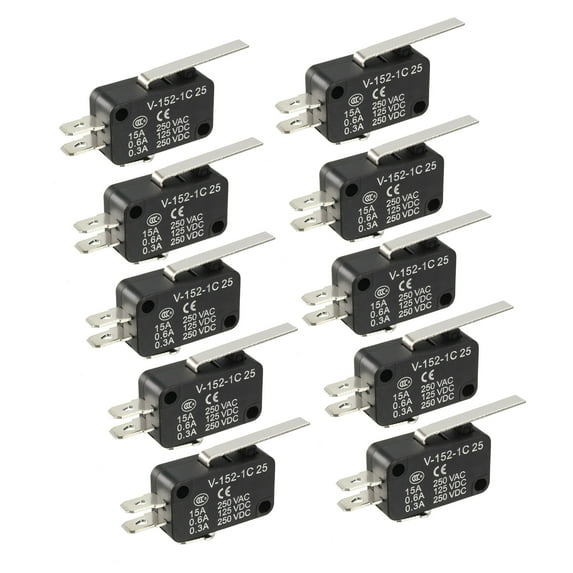

10PCS 15A 250VAC Black V-152-1C25 Straight Lever Micro Switch

Features
Adopt thermosetting plastic or thermoplastic;
Offers long service and operations life.
Small contact gap, snap sction, high sensitivity and small operatng travel
Widly used in appliance, elctronic equipment, machine, communication equipment, electric, apparatus and instrument, electro motion tool etc...

Specification
Rating Load: 15A/250VAC; 0.6A/125VDC, 0.3A/250VDC
OF:    250g
RF:    25g
PT:    4.0mm
OT:    1.6mm
MD:    1.5mm
OP:    15.2+/-1.2mm
Operation speed: 0.1mm-1m/s
Contact resistance: 15m Ohm max. (initial)
Insulation resistance: 100m Ohm min. (at DC500V)
Dielectric strength: 1,000 VAC 50/60 Hz for 1minute
Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)
Operating temperature: -25~+80°C
Contact Form: SPDT NO+NC
Pin number: 3
Overall size: 48x21x10mm/1.89x0.83x0.39inch(L*W*H)
Total weight: 68g

Package Content
10 x Microswitch
