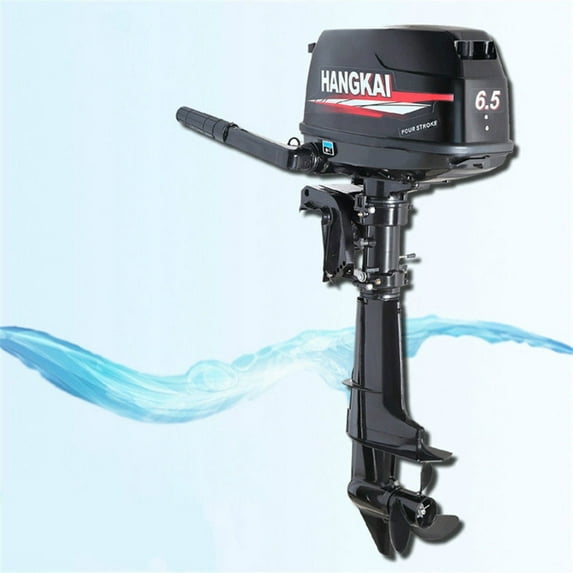

Miumaeov 6.5HP Outboard Boat Motor Engine 4-Stroke Updated with Water Cooling System

4 Stroke 6.5HP Fishing Boat Motor Water Cooling Short shaft Outboard Engine
6.5HP Outboard Boat Motor Engine 4-Stroke Updated with Water Cooling System

Cylinder Scoring is a serious damage,which caused by improper use and will cost you a lot of money to repair the motor.

Don't do the following will avoid cylinder Scoring:

1，start the motor on bank

2, use the motor when it stop coming out of water

Even if you want test the motor, it should be done in the river!

When there is no water coming out from the motor,please stop using it immediately ,then check the impeller of Water pump or check if the water outlet has been blocked.

Notice: Please add gear oil to the gears before use the motor and replace gear oil after the run-in period（10hours）.After run-in period , you need to replace the gear oil second time after 100 hours running . (if you do not know how to handle this, please contact with us )

About certification:

We can only provide CE certification, there is no other certification can be provided,thanks for your understanding.

The Hangkai 6.5 hp 4-stroke provides all the power you need for motoring in a small craft. This engine does that as well as providing fuel efficiency second to none and a newly redesigned carrying handle and holding grip make it convenient to transport! With all of this available at a competitive price, it is no wonder this little outboard receives so much attention and praise!

Brand: HANGKAI

Displacement: 123CC

Short shaft ：40cm

Gear ratio: 2.08(27:13)

Cylinder: 1

Max.speed(r/min): 5000-6000

Gear Positions: F-N-R

Packing size: 114x64x41cm

Ignition System: CDI

Cooling System: Water-cooling

Control System: Tiller control

Starting System: Manual start

Control System: #93 gasoline

N.W./G.W.(kgs): 26/31.2

Bore x Stroke(mm): 59x45

Recommended Propeller range: 3 -7.8"x8"

Recommended Lubricant: Four Stroke Lubricating oil

Mixing ratio: Pure gasoline

Trim and tilt system: Manual Tilt

Overall LxWxH(cm): 78.3x34.3x103.9

Standard fueel tank capacity: 12L

Optional fuel tand capacity: /

Bonus accessories:

brochures, tubing, cotter pins

Pump impeller, start rope, start key

12 liter fuel tank, tool kit, spark plug, cylinder head pad

Note:

1.About the noise: all the gasoline machines are noisy, currently we did not test the decibel , but the noise is the same as the motorcycle, so it is a normal phenomenon

2.The machine itself is lightweight, it can use on boat weight of 100kg or less , load-bearing 4 people, but the speed is certainly not the same when one person on it or 4 people on it . Customer who has high expectations on speed, please be noticed

3.It can be marched with inflatable boats, rubber boats or fishing boats

4.Necessary: you have to prepare a boat-motor stand or Hanging board on your boat
