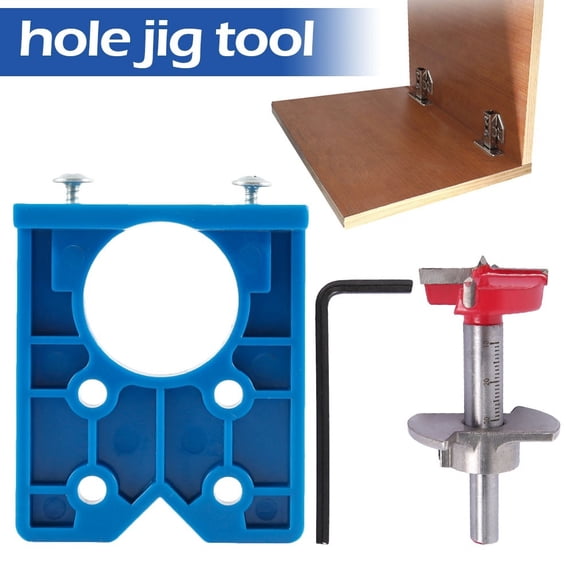

ODOMY 35mm Drilling Door Locator Concealed Hinge Jig Drill Guide Boring Hole Drill Guide

Please note, this item ships from an international seller. Expected delivery is 10-15 days.

Features:

Lightweight and portable, easy to operate; alloy material rotor, sharp and durable, continuous knife, suitable for positioning and installation of furniture door hinges.

Usage:

1. Determine the position of the hinge cup, with the short plate facing upward, the screw fastened to the edge of the wood plate, and drill the hinge cup hole;

2. Draw the corresponding center line on the other board, with the short board facing downward, the center line aligned with the inverted triangle, and drill the hinge seat positioning hole;

3. Install hinges.

4. Adjust the maximum distance of the hole opener to 0-30 mm.

Specification:
Material: ABS plastic
Storage: hinge locator unit +adjustable hole opener
Adjustable hole: 35mm
Hinged positioner size: 77*66cm

Package: 1 set
