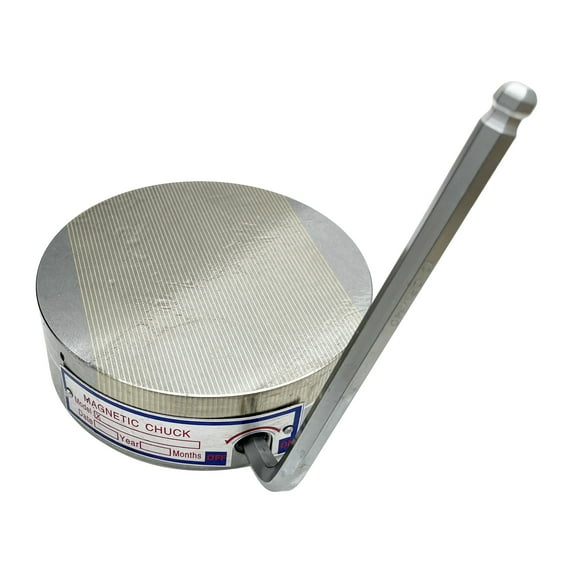

INTBUYING Dia 6.3in Round Permanent Magnetic Chuck for Grinding Milling Machine

Description:
Round Magnetic Chuck is mainly used in a variety of surface grinding machine, tool grinding machine as a workpiece positioning processing. It has the features of high precision, uniform suction and safety, so that it is a processing positioning sucker.

Parameters:
Suction: 100-120N /cm²
Diameter : about 160mm (6.3 inch )
Height :about 49mm (1.92 inch)
Operating Temperature: -40 ℃ -50 ℃
Please note: the surface of the machine is coated with anticorrosive oil. Please pay attention when receiving the item.

Method of use:
Put the workpiece on the suction table, and then insert the wrench into the shaft hole to turn clockwise180°, the workpiece can be sucked for processing.
The workpiece is completed, the wrench can be inserted into the shaft hole to turn counterclockwise 180 °, you can remove the workpiece.

Maintenance:
1.Sucker should be wiped clean before use to avoid scratching the surface, after using, the surface should be coated with oil to prevent corrosion.
2.Use of ambient temperature: -40 ℃ -50 ℃.
3.Do not knock, to prevent magnetic reduction.
4.Strong dense pole permanent magnet sucker is for surface grinder, sparks machine, WEDM.
5.Very fine spacing, uniform magnetic distribution, particularly for processing small thin parts.
6.Worktable precision no change while magnetizing and demagnetizing.
7.Panel with special treatment, no leakage, to prevent corrosion of cutting fluid. To prolong service life of the disk, it can be placed on the cutting fluid for storage. Six-surface fine grinding processing, the sucker can be used in vertical direction on the wire cutting machine cutting.
8.High-performance magnetic steel disk, with suction, almost no remanence.

Item included: 170433
