PC Efficient Air-cooled Radiator Processor 2/4/6 Heat Pipe Cooler CPU Cooling Fan Installing LGA 2011 2099 2066 x79 x99 x299 E5

Product brand: XUANFENG

Product name: CPU cooler fan

2 Heat pipes 1-Fan Product size: 90 (length) * 62 (width) * 135 (height) mm

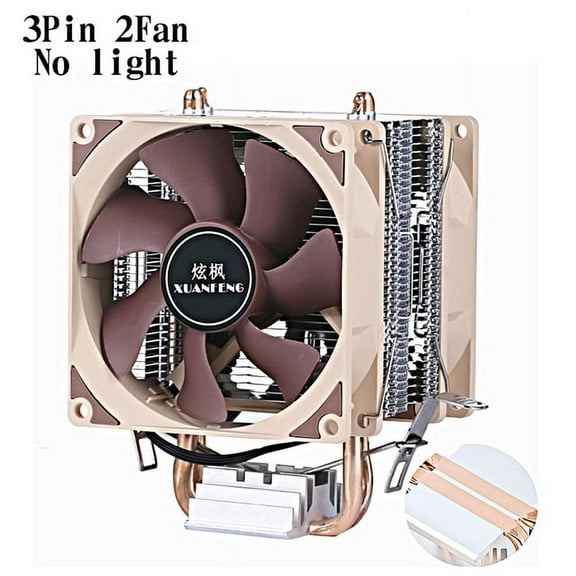

2 Heat pipes 2-Fan Product size: 90 (length) * 87 (width) * 135 (height) mm

4 Heat pipes 1-Fan Product size: 90 (length) * 72 (width) * 140 (height) mm

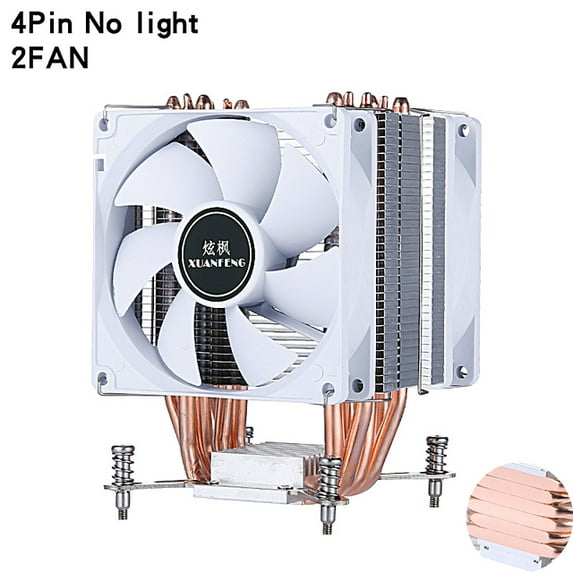

4 Heat pipes 2-Fan Product size: 90 (length) * 97 (width) * 140 (height) mm

6 Heat pipes 1-Fan Product size: 90 (length) * 72 (width) * 140 (height) mm

6 Heat pipes 2-Fan Product size: 90 (length) * 97 (width) * 140 (height) mm

Fan size: 90 * 90 * 25mm

Heat pipe specification: 6mm * 2/4/6 pieces

3-wire speed: 2000 RPM ± 10%

4-wire speed: 800-2000 RPM ± 10%

3-wire current: 0.18A without lamp, 0.28A with lamp ± 10%

4-wire current: 0.1A without lamp, 0.2A with lamp ± 10%

3-wire power: 2W without light, 3.5W with light ± 10%

4-wire power: 1W without light, 2.5W with light ± 10%

Noise control: 25dBA

Air volume: 60CFM (maximum)

(The above data is for one fan. If there are multiple fans (air volume, noise, current, power), the data will increase.)

Fan bearings: hydraulic bearings

Working voltage: DC 12V

Process materials: copper and aluminum

Working life: 50000 hours

Fan interface: 3Pin (3-wire constant speed)/4Pin (4-wire temperature control)

Fan wire length: 30CM ± 10%

Packaging method: boxed

Note:

Due to manual measurement, different measurement methods and tools, there may be slight dimensional deviations.

Due to differences in lighting, angle, and display, images may not reflect the actual color of the item

The following is an installation tutorial video for this product, hoping to be helpful to you. The products installed in the video are for reference only, but the installation method is the same.

Socket:

For Intel: LGA2011 2066 x79 x99 E5 x299 2099

Regarding the selection of interface types

3Pin or 4Pin interfaces are universal and can be installed without worrying about interface types

Fixed speed type: 3-pin fan, fixed speed, large air volume, good heat dissipation, but there may be relatively slight wind noise

Temperature control board: The 4Pin fan will intelligently adjust the fan speed based on the current CPU temperature, which is energy-saving and silent. Extend service life! (The motherboard needs to support and enable PWM speed regulation function, which is basically available on all motherboards)
