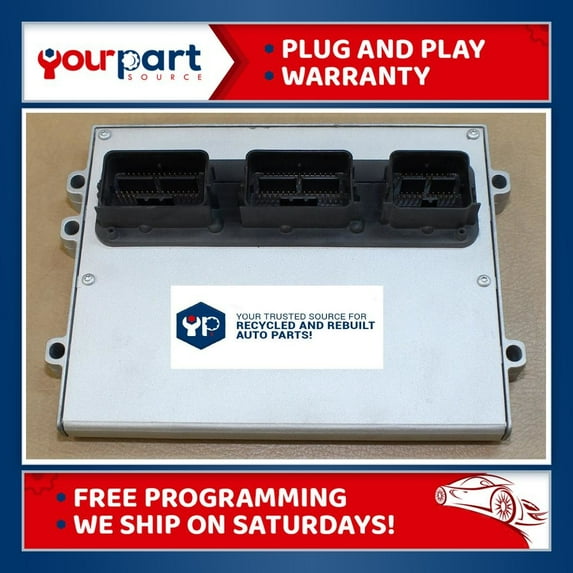

04 F-150 F-250 F-350 5.4L ECU ECM PCM ENGINE COMPUTER 4L3A-12A650-APC TESTED PCM

Part Number

4L3A-12A650-APC

ECU will arrive with updated part number sticker having been programmed with latest Ford Software Updates!

Fitment/Interchange

This ecu will interchange or replace the following ecu part numbers for 2004 F-Series 5.4L trucks:

4L3A-12A650-APC

4L3A-12A650-BDC

4L3A-12A650-BTE

4U7A-12A650-AEA

4L3A-12A650-APD

4L3A-12A650-BDD

4L3A-12A650-BTF

4U7A-12A650-AEB

4L3A-12A650-APE

4L3A-12A650-BDF

4U7A-12A650-AAB

4U7A-12A650-AEE

4U7A-12A650-AJB

4L3A-12A650-BTA

4U7A-12A650-AAD

4U7A-12A650-AJA

4U7A-12A650-AJD

4L3A-12A650-BTD

4U7A-12A650-AAE

4U7A-12A650-AKB

Tech Notes

ECU has been tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
• Reference Voltage Good!
• ECU has transmission commnication!
• ECU powered up and has communication!
• ECU fuel pump/main relay tested good!
• ECU injectors/coils tested good and much more!

Install Notes

• Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
• Disconnect and remove the module to be replaced.
• Install and connect the replacement module.
• Connect the negative terminal of the battery.
• For *Plug N Play* Complete the relearn process for the ECU. Instructions will be provided with the unit. See details below.

*Plug N Play* Programming / PATS Security

For Plug and Play you must have **TWO CHIPPED NON-CLONED KEYS** and follow the below instructions. If you have the two original keys with the Ford logo on them, you are ready to complete the following instructions:

Step 1: Purchase correct ecu for your application - see fitment guide above for details.

Step 2: Program ecu to your VIN. We provide free programming for our customers. During checkout you must list your VIN and mileage in the "Notes to Seller" for us to program the ECM. If we do not hear from you through the order notes or a message through eBay we will assume your mechanic is performing the programming (no problem at all) and we will ship the ECM out the next business day as directed by eBay.

Step 3: Once the ecu is installed you will then need to follow the instructions we include and after completion of these steps the vehicle will be operational - No trip to your dealer! These instructions require no special tools.

Item Condition

• Mounting points are all open and intact
• Pins perfect, none are broken or bent
• Lock tabs in place
• Connector plastic may have minor chip but pins, guides and lock tabs are in place.

Warranty

This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
