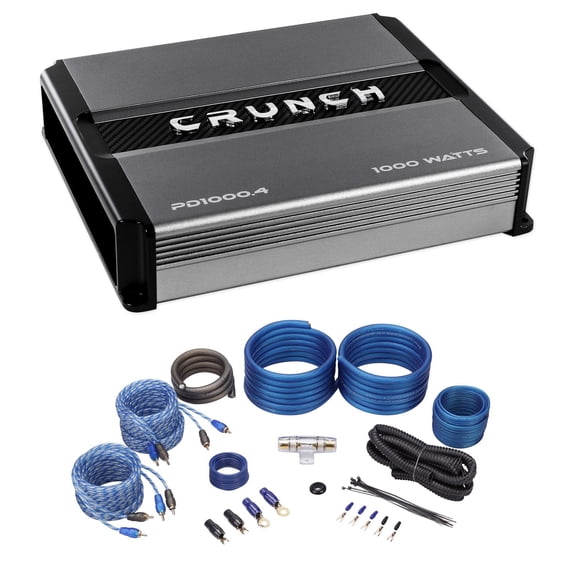

Crunch PD1000.4 1000w 4-Channel Pro Power Car Audio Amplifier Class AB+Amp Kit
Key item features
Package Includes:
(1) Crunch PD1000.4 1000 Watt 4-Channel Pro Power Car Audio Amplifier Class ABAmp
(1) Rockville RWK42 4 Gauge 4 Chan Car Amp Wiring Installation Wire Kit (2)RCA's
Description:
Crunch POWER DRIVE with QTD Technology delivers huge power in a cool runningefficient heatsink. Features include built-in electronic crossovers andhigh-level inputs. 1000 Watt 4-Channel Car Audio Amplifier.
Pre-Amp Circuitry Low Noise Pre-Amplifier
Maximum low voltage signal from the source unit comes into the amplifier througha low voltage circuit which delivers minimal distortion through theamplification process
Inputs Low voltage RCA Inputs
Highest sound quality connection with quality RCA materials helps preventinterference and minimize distortion in the signal path
High Level Inputs
Easily tie into OEM audio systems that do not offer RCA output to maximize aftermarket amplifier power
Operation Mode
Four Channel Stereo, Dual Stereo Bridged, Stereo + Bridged Mono, Dual BridgedMono
Crossover/Signal Shaping Versa-Cross Electronic Crossover
Fully Adjustable 12dB Crossovers
Equalizer Electronic
Fully Adjustable 12dB Crossovers
Class/Topology Class A/B
Features:
Crunch PD1000.4 Pro Power 1000 Watt Class AB 4-Channel Car Amplifier
Power Output @ 2 Ohms: 4 x 250 Watts
Power Output @ 4 Ohms: 4 x 125 Watts
Mono Bridged @ 4 Ohms: 2 x 500 Watts
Class A/B
Variable Voltage: 0.2 - 5V
Signal to Noise: >98dB
Frequency Response: 20Hz - 20kHz
Crossover Type: Variable Electronic 12dB Per Octave
Low Pass Crossover 12dB Per Octave: 50Hz - 250Hz
Crossover Frequency Range:
CH1 & CH2: 60Hz - 12kHz
CH3 & CH4: 30Hz - 250Hz
Tone Control: Built-In Bass Control
Bass Boost: 0 - 9dB
Total Channels: 4
Audio Inputs: Unbalanced Inputs (RCA)
Audio Outputs: Line Output (RCA)
Power Terminal 12V/GND: 8 ga
Speaker Terminal Wire Gauge: 12 ga
Fusing: 40A x 2
Product Dimensions: 14.2" x 11.5" x 3.8" inches
Product Weight: 6.25 lbs.
Video of RWK42:
Video for Unboxing RWK42:
Features:
Rockville RWK42 4 Gauge 4 Channel Car Amplifier Wiring Installation Kit
(2) 17 High Grade Twisted Pair of 100% Copper RCA Cable
17 4 Gauge Translucent Blue SuperFlex Power Cables
17 18 Gauge Blue Remote Cable
17 16 Gauge Clear Speaker Wire
3 4 Gauge Clear SuperFlex Ground Wire
Gold Plated AGU Heat Resistant Fuse Holder
60 Amp AGU Gold Plated Fuse
7 Split Tube Loom
Accessories Included: Wire Ties, Ring Terminals, Butt Connectors, Spades, andGrommets
Soft abrasion proof insulating jacket allows for 100% improved flexibility
PVC outer jacket can with-stand an extreme temperature range of -40 to 220degrees F
Specs
- BrandCrunch
- ModelPD1000.4
