Replacement Quadrafire Baffle Board - SRV7037-112 - 4300 Acc - 2300F Rated - 2 Pcs Set - BB-950155

Key item features

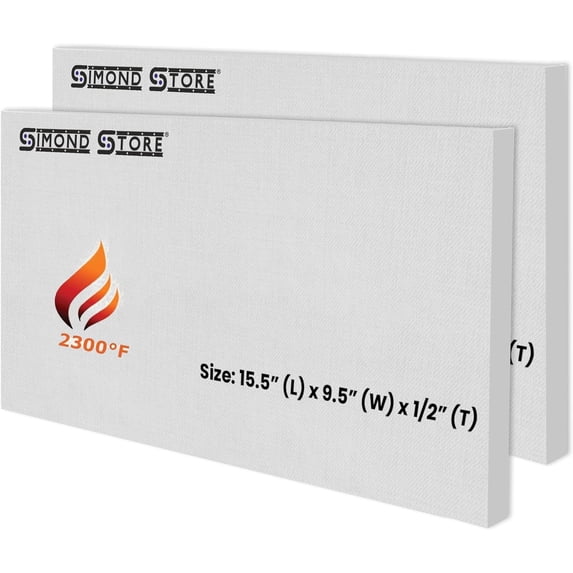

Direct Replacement: This 2-piece refractory ceramic fiber baffle board set directly replaces Quadrafire SRV7037-112.
Precise Dimensions: Each pre-cut baffle board measures approximately 15.5 inches (L) x 9.5 inches (W) x 0.5 inches (T).
Broad Compatibility: Compatible with Quadra-fire 4300 Automatic Combustion Control (ACC) and 43ST-ACC (Step Top) models.
Enhanced Performance: Designed to replace worn baffles, it retains heat and waste gases longer within the firebox, improving fuel efficiency.
Advanced Material: Composed of refractory ceramic fibers and specialty clay-based minerals, offering high density, low thermal conductivity, and resistance to hot gas erosion.
Extreme Durability: Rated for continuous use up to 2100°F (1149°C) and peak temperatures of 2300°F (1260°C), with a melting point of 3200°F (1760°C).
Versatile Application: Pre-rigidized for robustness, these boards can be cut to custom shapes and sizes for various heat-resistant purposes.

Generated by AI

Specs

Brand
Simond Store
Color
white
Rec location
Indoor
Material
Ceramic
Number of pieces displayed
2
Model
BB-950155 (SA)

Current price is $68.99

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

A ceramic baffle board is an ideal alternative for replacing your stove baffle. Compared to other ceramic fiber boards, this ceramic fiber baffle board is designed specifically for applications requiring low thermal conductivity, high compressive strength, and modulus of rupture with greater resistance to corrosion by hot gases. This board has a slight odor during initial firing until the organic binders are burned off. After that, it will be pure white and odorless. Ceramic Insulation Board is rated up to 2300F (1260C) peak and 2100F (1149C) continuous use with a melting point of 3200F (1760C). Features: •It has been pre-rigidized, which makes it more robust and dust-free. •These two pre-cut baffle boards measure 15.5" (L) x 9.5" (W) x 0.5" (T) (Approx.) and can be used to replace the Quadra fire baffle, but they can also be used for any other heat resistant purpose. •This board can be cut to any shape and size using a small toothed hacksaw blade, knife drill, and machine. This board is not as strong as firebrick. •Density: 45 Pcf (Min). •Linear Shrinkage: 0.5 % Max (at 2192 °F x 24 Hrs.) •Modulus of Rupture: 469 PSI (Min.) for 1” Thickness •Compressive Strength: 284 PSI (Min) at 10% deformation You will either need a new ceramic fiber blanket or an existing blanket that was installed with the stove and is in good condition to complete this baffle kit. If you need a new one, come to our store; we have a variety of sizes of ceramic fiber blankets.

Replacements: This 2 Pcs Refractory Ceramic Fiber Baffle Board Replaces Quadra fire SRV7037-112
Dimensions: Each Baffle Board measures 15.5” (L) x 9.5” (W) x 0.5” (T) App
Compatibility: Quadra-fire 4300 Automatic Combustion Control (ACC), 43ST-ACC (Step Top)
Purpose: To replace burned and worn out baffles inside the firebox, on top of the secondary air tubes. The pre-cut size baffle is simple to replace, its high heat resistance features help to keep warm air and waste gases inside the firebox for longer, allowing the burning fuel to produce even more heat
Material: This high temperature ceramic baffle is composed of refractory ceramic fibers and specialty clay-based minerals, and has unique features such as high density, low thermal conductivity high compressive strength, hot gas erosion resistance, and durability. It can withstand temperatures of up to 2300°F

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Brand

Simond Store

Color

white

Rec location

Indoor

Material

Ceramic
