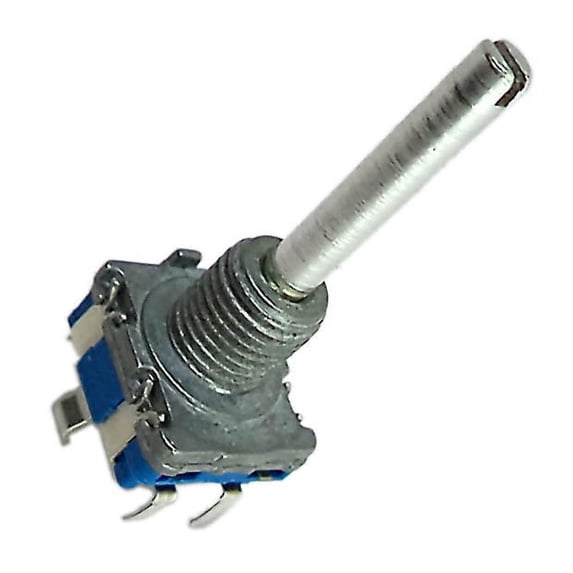

ACZ11BR2E-25SD1-20CZ-0663 - ENCODER MECHANICAL INCREMENTAL 20 QUADRATURE (INCREMENTAL) VERT

ACZ11 Series Through Hole Mechanical Panel Mount Encoder

The ACZ11 encoder series is designed to provide an accurate and inexpensive method for user input across a wide range of applications. The family of mechanical encoders includes vertical and right angle models in an 11 mm package size offering an economical solution for control applications where space is a critical concern. Also included in the offering are a range of resolutions detent options and pin configurations to allow for convenient integration with many designs.

Specifications

---

• Input Voltage (Vdc) 0 ~ 5
• Shaft Length (mm) 25
• Resolution (PPR)/ Detent 20 ppr / 20 detent
