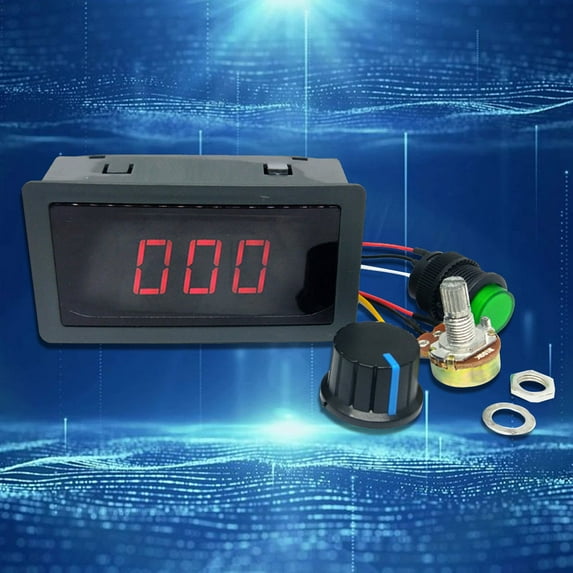

Motor Genic DC 6V-30V 12V 24V Motor PWM Speed Controller With Digital Display Switch Max 8A

DC 6V-30V 12V 24V Max 8A Motor PWM Speed Controller With Digital Display Switch

Feature:
1: CCM5D DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
2:Large 0.56 inch 3-digit LED display numbers allow viewing under the most adverse conditions.
3: The display range of 3-digit LED display is ”000”-“100”. (For example, displayed ”066” as the picture 1, it means that the PWM output duty cycle is 66%.)
4: Adjustable speed range is 0%-100%. Suitable for the DC motor (or DC load) within 5A, Peak current 8A.

Specifics:
Condition: 100% Brand New
Input Voltage: DC 6V-30V
Output Power: 240W
OutputVoltage: linear under load
Output Current: 5A(Peak current 8A)
PWM Frequency: 16kHz
Duty Cycle adjustable: 0%-100%
Module size: 79mm*42mm*24mm/3.1*1.6*0.9 inches
Product net weight: 2.1 ounces

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.This controller can't be work with brushless motor.

Package Included:
1x DC motor speed controller
