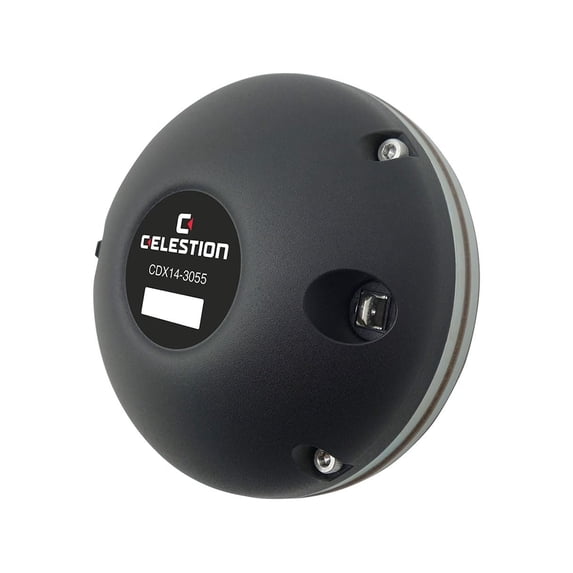

CELESTION T6611 CDX14-3055 PRO Audio 1.4-inch Drive Exit Neodymium Magnet HF Compression Driver 8-Ohm 120 Watt Rms 240 Watt Max Titanium Diaphragm

Hero image 0 of CELESTION T6611 CDX14-3055 PRO Audio 1.4-inch Drive Exit Neodymium Magnet HF Compression Driver 8-Ohm 120 Watt Rms 240 Watt Max Titanium Diaphragm, 0 of 2

Celestion

CELESTION T6611 CDX14-3055 PRO Audio 1.4-inch Drive Exit Neodymium Magnet HF Compression Driver 8-Ohm 120 Watt Rms 240 Watt Max Titanium Diaphragm

(No ratings yet)

Key item features

GENERAL Brand : CELESTION Model Number : T6611 CDX14-3055 UPC : 739894661140 Maximum modal suppression phase plug Deep-drawn titanium diaphragm with polyimide surround Sound Castle soft clamping diaphragm assembly
SPECIFICATIONS Power rating : 120W Continuous power rating : 240W Rated impedance : 8 Sensitivity : 108dB Frequency range : 500-20,000Hz Recommended min. crossover 12dB/oct : 800Hz Magnet type : Neodymium Voice coil diameter : 75mm / 3in Voice coil material : Edgewound copper clad aluminium Diaphragm material : Titanium Surround material : Polyimide
MOUNTING INFORMATION Width : 120mm / 4.7in Depth : 55mm / 2.2in Fitting : Bolt 4 x M6 holes on 102mm/4in PCD Throat exit : 35mm / 1.4in Unit weight : 1.7kg / 3.7lb PACKED DIMENSIONS & WEIGHT Single pack size W x D x H : 170mm x 140mm x 75mm / 6.7in x 5.5in x 3in Single pack weight : 2kg / 4.4lb
Power rating : Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Continuous power rating : Defined as 3dB greater than the AES rating. Sensitivity : Measured on axis at 1W, 1m, using typical horn, in 2 anechoic environment.
The CELESTION T6611 is a part number for a Celestion 1.4 inch compression driver, which is a type of loudspeaker optimized to reproduce high-frequency sounds and is commonly used in professional audio systems. These drivers are designed to be paired with a horn or waveguide to efficiently project sound over a wide area, making them ideal for live sound reinforcement and public address systems.

Specs

Brand
Celestion
Color
MultiColor
Rms power rating
120 W
Peak audio power handling
240 W
Audio feature
Compact
Impedance
16 ohm

Current price is $244.00

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $29.00

4-Year Plan - $43.00

How do you want your item?

Ships to

Arrives by Tue, May 26

Sold and shipped by GREATPRICE

4.248344370860927 stars out of 5, based on 604 seller reviews(4.2)

Report an issue with this seller

Free 30-day returns

More seller options (1)

Starting from $249.00

About this item

Product details

CELESTION T6611 CDX14-3055 PRO Audio 1.4-inch Drive Exit Neodymium Magnet HF Compression Driver 8-Ohm 120 Watt Rms 240 Watt Max Titanium Diaphragm

GENERAL Brand : CELESTION Model Number : T6611 CDX14-3055 UPC : 739894661140 Maximum modal suppression phase plug Deep-drawn titanium diaphragm with polyimide surround Sound Castle soft clamping diaphragm assembly
SPECIFICATIONS Power rating : 120W Continuous power rating : 240W Rated impedance : 8 Sensitivity : 108dB Frequency range : 500-20,000Hz Recommended min. crossover 12dB/oct : 800Hz Magnet type : Neodymium Voice coil diameter : 75mm / 3in Voice coil material : Edgewound copper clad aluminium Diaphragm material : Titanium Surround material : Polyimide
MOUNTING INFORMATION Width : 120mm / 4.7in Depth : 55mm / 2.2in Fitting : Bolt 4 x M6 holes on 102mm/4in PCD Throat exit : 35mm / 1.4in Unit weight : 1.7kg / 3.7lb PACKED DIMENSIONS & WEIGHT Single pack size W x D x H : 170mm x 140mm x 75mm / 6.7in x 5.5in x 3in Single pack weight : 2kg / 4.4lb
Power rating : Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Continuous power rating : Defined as 3dB greater than the AES rating. Sensitivity : Measured on axis at 1W, 1m, using typical horn, in 2 anechoic environment.
The CELESTION T6611 is a part number for a Celestion 1.4 inch compression driver, which is a type of loudspeaker optimized to reproduce high-frequency sounds and is commonly used in professional audio systems. These drivers are designed to be paired with a horn or waveguide to efficiently project sound over a wide area, making them ideal for live sound reinforcement and public address systems.
