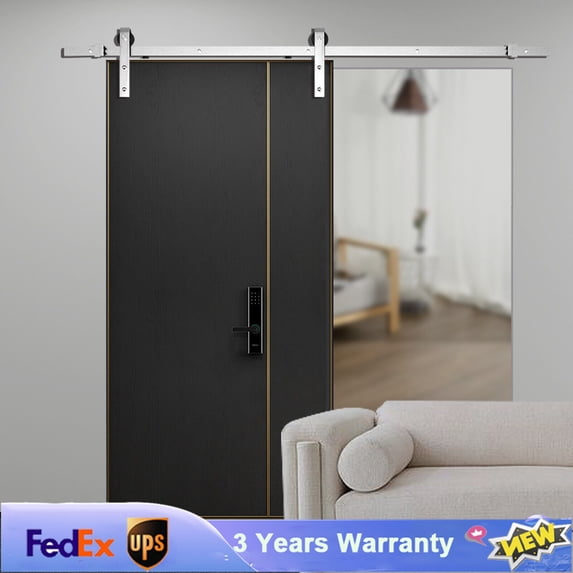

Sliding Barn Door Hardware Track Kit Smoothly Straight Pulley Heavy Duty
Key item features
- High Load-bearing Capacity: It is made of high-quality 0.24'' thick carbon steel, which is solid, wear-resistant, hard and not easy to deform, ensuring a good bearing capacity (up to 150kg/330lbs).
- Smooth Operation: 2 rollers are nylon wheels with ball bearings to make your door move smoothly and quietly. At the same time, it is equipped with two anti-jump pads and a floor guide to prevent the door from swinging back and forth or popping out from the top.
- Easy to Clean: The surface is treated by electroplating and nickel plating wire drawing, which is rust-proof, smooth, flat and easy to clean. You can easily remove dust and stains with a wet rag.
- Easy Installation: You just need to measure, position, drill and assemble. Detailed and intuitive instructions show each installation step with text and pictures, which will help you complete the installation.
- Complete Accessories: This is a complete kit, including three 1.6ft tracks, two rollers, four spacers, two door stoppers, etc. It does not need to purchase separately, providing you with great convenience.
Specs
- FinishNickel Plating
- ColorSilver
- Installation typeScrew-In
- FeaturesHeavy-Duty
How do you want your item?
About this item
Product details
Description
The heavy doors for safety reasons bring great inconvenience to our daily life. Therefore, we have been working hard to create a device that considers both safety and convenience. This fashionable and powerful sliding barn door hardware kit can help you easily push and pull heavy doors such as barn doors and garage doors in daily life, making life more convenient for the elderly and children. Its sliding opening and closing system not only saves a lot of manpower but also is an ideal choice for modern decoration!
Application
It is suitable for doors with a thickness of 1-3/8- 1-3/4", a width of 26-30'' and a weight of no more than 330 lbs. It can be widely used in barns, stables, bedrooms, dressing rooms, garages, and so on.
Specification
Material: 6mm/0.24'' Thick Carbon Steel
Color: Silver
Surface Treatment: Electroplating+Nickel Plating Wire Drawing
Assembly Required: Yes
Fit Door Width: 66-75cm/26-30''
Fit Door Thickness: 35mm-45mm/1-3/8- 1-3/4"
Applicable Max Door Weight Capacity: 150kg/330lbs.
Package Size: 51.5*12.5*9cm/20*5*3.5''
Track Total Length: 0.5m*3/5ft
Gross Weight: 6.7kg/14.7lbs
Net Weight: 6kg/13.23lbs
Package Included
3*0.5m/1.6ft Tracks
2* Rollers
4*Spacers
2*Door Stoppers
1*English Installation Manual
All Accessories for Assembly
Notes
1. Please note that the wall above the door opening must be load-bearing, and the wall cast with red bricks or concrete can be installed directly. Wood blocks shall be added to non-bearing walls such as foam or hollow bricks.
2. Please note that the distance from the top of the door opening to the ceiling should be greater than (the 16cm/6.3''+width of the door jamb). For large wheel models, there should not be a radian for straight arm models greater than (21cm/8.3''+width of the door jamb). The radian is 2.5cm/1'' long, that is, there should be at least (14cm/5.5''+width of the door jamb) space.
3. Please note that the installed wall should be on the same horizontal plane from top to bottom, from left to right, and one wall on the left and right should be about as wide as the door opening so that it can be pushed away.
4. Please ensure that there is without heel line, door pocket line and other prominent decorations on the wall, and the thickness of the door panel is 4 cm/1.6''.
5. Please note that the actual bearing capacity is related to the wall. The door is not included in the package.
6. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
