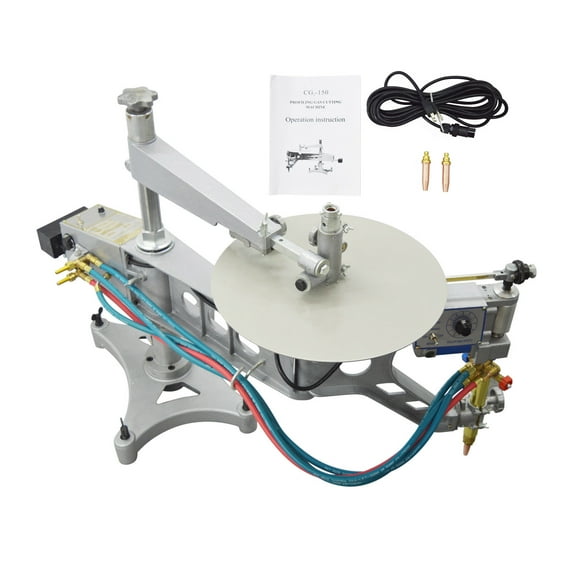

Profiling Gas Cutting Machine Automatic Profiling Metal Shape Cutter CG2-150 Cutting Diameter 1.97"-23.6"

(No ratings yet)

Key item features

The CG2-150 profile cutting machine body is precision die-cast from aluminum ingots.
According to the sample plate, can cut any shape, any size in large quantity in the same shape in very short span of time.
As the base arm moves along the edge plate of the template, the torch can correctly cut the same shape as the template.
The speed can be adjusted uniformly within the specified range without changing the performance of the motor, and the speed control is also stable.
Profiling Flame cutting machine can be used in boiler, shipyard, infrastructure industries, metal industries, metallurgy and small workshop with equal ease.

Specs

Die-cut machine type
Die-Cutting Machine
Brand
Intbuying
Model
028209-TopS1
Power type
Electric
Dimensions
42.50 x 12.80 x 29.90 Inches
Weight
92.6 lb

Price when purchased online

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $59.00

4-Year Plan - $77.00

Report an issue with this seller

More seller options (1)

Starting from $1,129.00

About this item

Product details

Product Overview
This profiling gas cutter is an efficient and economical equipment for copying metal shapes. It is well designed made of grade “A” cast alloy. It can cut repeatedly circles and many other shapes according to the sample plate. The accuracy of the cutting surface is good and the quality is high. The body is small and make it portable for its use indoors and also outdoors.

Parameters
Model: CG2-150
Voltage: AC110V/60Hz
Circle cutting range(diameter): 1.97"-23.62"(50mm-600mm)
Cutting speed: 50-750mm/min
Cutting thickness: 0.2"-3.9"(5mm-100mm)
Maximum cutting straight length: 47.2"(1200mm)
Square cutting range: 1.97"*1.97"-19.68"*19.68"(50mm*50mm-500mm*500mm)
Maximum cut rectangle: 35.4"*15.7"(900mm*400mm)/29.5"*17.7"(750mm*450mm)
Cutting precision: Ovality:≤0.06"(1.5mm)
Square:0.04"(±1mm)
Manner of packing: New wooden cases
Package size: 32.7"*16.5"*31.1"(79cm*42cm*83cm)
Item size:42.5x12.8x29.9inch
Net weight: 92.6LB(42kg)
Gross weight: 132.3LB(60kg)
Note:Welding hose to connect to the machine not included.

Item Included: 028209-TopS1
INTBUYING Gas Cutting Machine *1
Cutting torch *3
English manual *1

The CG2-150 profile cutting machine body is precision die-cast from aluminum ingots.
According to the sample plate, can cut any shape, any size in large quantity in the same shape in very short span of time.
As the base arm moves along the edge plate of the template, the torch can correctly cut the same shape as the template.
The speed can be adjusted uniformly within the specified range without changing the performance of the motor, and the speed control is also stable.
Profiling Flame cutting machine can be used in boiler, shipyard, infrastructure industries, metal industries, metallurgy and small workshop with equal ease.
