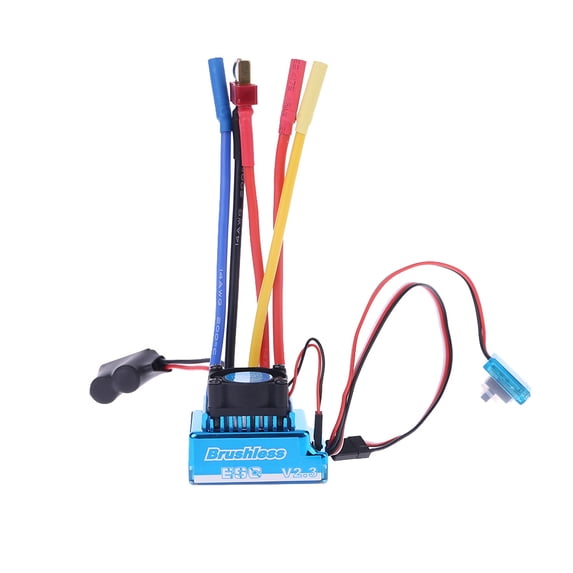

Waterproof 45A 60A 80A 120A Brushless ESC Electric Speed Controller Dust-proof for 1/8 1/10 1/12 RC Car Crawler RC Boat Part

Features:
•Water-proof and dust-proof for all-weather races; (Note:
please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
• External programming port, easy to connect to the Program Card when setting the ESC;
• Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment;
• 9 steps of acceleration(punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks;
• Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection;
• One-button(the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings;
• Compatible with the optional device-the portable Digital LED Program Card, especially convenient for outdoor use

Specification:
Material: Plastic+PCB
Color: Shown As Pictures
Weight: 80g
Options: 45A, 60A, 80A, 120A
Type: RC Model Part & Acces

45A ESC Specification:
Continuous Current: 45A
Burst Current: 180A
Battery: 2-3S Li-Po
BEC Output: 5.8V / 3A (Switch Mode)
Power Supply Plug: T Plug Male
Dimension: 48 * 38 * 34mm

60A ESC Specification:
Continuous Current: 60A
Burst Current: 320A
Battery: 2-3S Li-Po
BEC Output: 5.8V / 3A (Switch Mode)
Power Supply Plug: T Plug Male
Dimension: 48 * 38 * 34mm

80A ESC Specifications:
Continue Current: 80A
Burst Current: 480A
Battery: 2-4S Li-Po
BEC output: 5.8V / 3A(Switch Mode)
Power Supply Plug: T Plug Male
Motor Plug: 4mm Banana Female Plug
Dimension: 48 * 38 * 34mm

120A ESC Specifications:
Continuous Current: 120A
Burst Current: 600A
Battery: 2-4s LiPo
BEC output: 5.3V / 5A(Switch Mode)
Power Supply Plug: T Male
Motor Plug: Female 5mm Bullet Connector
Dimension: 48 * 38 * 34mm

Package List:
1 * ESC
