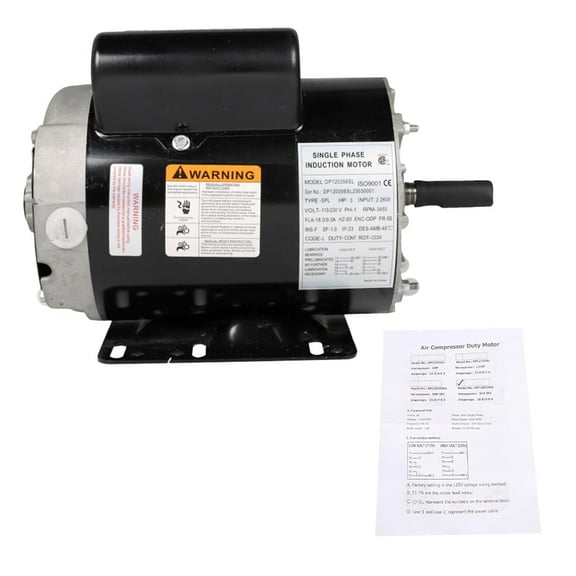

findmall Electric Motor 3.7 HP 3450 RPM Compressor Duty 56 Frame 1 Phase 5/8" Shaft 230 V

Key Points:

- Brand new 3.7 hp 230-volt compressor duty electric motor.

- This motor features a 56 frame with a 5/8" diameter shaft and is 3450 RPM.

- This is a non-reversible motor and features counter-clockwise (CCW) rotation facing the shaft.

- This is a high-quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications.

Details:
- Open Drip Proof (ODP)
- Single Phase
- 3.7 HP
- 3450 RPM
- 60hz
- 230 Volts
- AMB 40 °C
- Frame: 56
- Duty: Cont. Compressor
- Service Factor: 1.0
- Full Load Amps: 17.2
- Insulation Class: F
- Non-Reversible, CCW Rotation Facing Shaft
- Thermally Protected
- Overall Length W/O Shaft: Approx 12"
- Overall Length With Shaft: Approx 14-1/2"
- Overall Height: Approx 8-5/8"
- Overall Width: Approx 6-5/8"
- Shaft Diameter: 5/8"
- Shaft Length: 2-1/2"
- Standard Size Keyway: 3/16"
- Features Manual Reset Overload Protection

Package Including:
- Electric Motor 3.7 HP 3450 RPM Compressor Duty 56 Frame 1 Phase 5/8" Shaft 230 V
