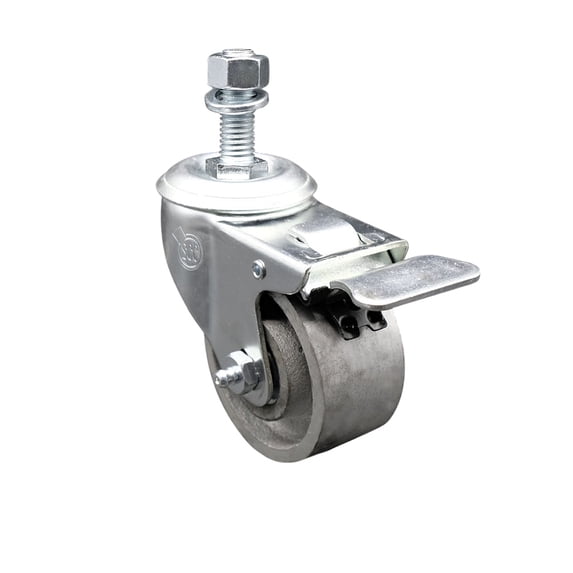

Semi Steel Swivel TS Caster w/Roller Bearing-3" Wheel&12MM Stem w/Total Lock BRK
(No ratings yet)
Semi Steel Swivel TS Caster w/Roller Bearing-3" Wheel&12MM Stem w/Total Lock BRKSemi Steel Swivel TS Caster w Roller Bearing 3 Wheel 12MM Stem w Total Lock BRKSemi Steel Swivel Threaded Stem Caster 5 Wheel 12MM StemSemi Steel Swivel TS Caster 4 Wheel 12MM Stem w BrakeSemi Steel Swivel TS Caster 4 Wheel 12MM Stem w Total Lock BRK
Key item features
- These Service Caster Series #20 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” Wheel: 5-1/8” mounting height; 5” Wheel: 6-1/8” mounting height.
- Weight Capacity: 3", 4", and 5": 300 lbs Capacity/Caster
- All casters feature a 12mm diameter (1.75 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
- Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
Specs
- Size3" Wheel
- MaterialSemi Steel Cast Iron
- BrandService Caster
- Weight1.5 lb
- Has castersN
- Has written warrantyNo
Price when purchased online
Not Available
How do you want your item?
Not available
About this item
Product details
Listing is for one (1) Service Caster Series #20 swivel caster with a 3" diameter by 1-1/2" wide semi steel cast iron wheel and a 12mm-1.75 X 1-1/2" metric threaded stem with total lock brake capable of supporting 300 lbs./caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 roller bearing semi-steel cast iron casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the semi-steel wheels are abrasion resistant and rugged, maintaining effortless rolling under heavier loads, and provides a cost-effective solution over steel wheels. The roller bearing is capable of carrying greater loads while also providing smoother rolling motion. It has a split outer race shell into which the roller assembly is inserted. Combination seal/thrust retainer washers protect the bearing from dirt, water, and chemicals. They also help absorb thrust friction (Note: roller bearing must be used with hardened spanner bushing or hardened shaft). Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
- These Service Caster Series #20 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” Wheel: 5-1/8” mounting height; 5” Wheel: 6-1/8” mounting height.
- Weight Capacity: 3", 4", and 5": 300 lbs Capacity/Caster
- All casters feature a 12mm diameter (1.75 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
- Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Size
3" Wheel
Material
Semi Steel Cast Iron
Brand
Service Caster
Color
Swivel - Total Lock Brake - Silver
