Hero image 0 of ADXL355 3- Accelerometer Sensor Module Digital Output Industrial Grade Low Power Consumption, 0 of 6

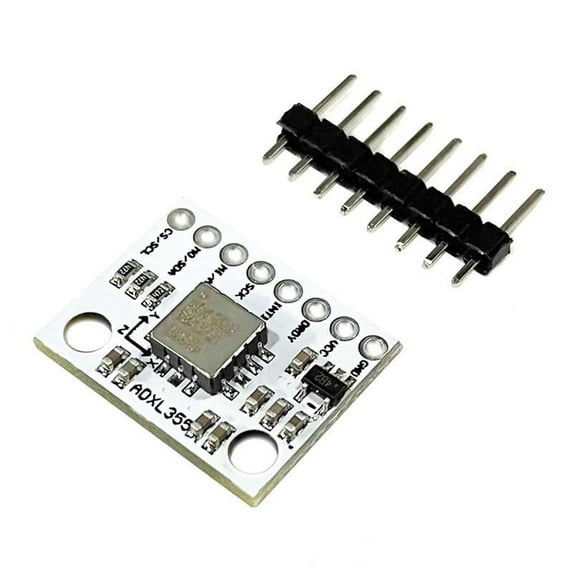

ADXL355 3- Accelerometer Sensor Module Digital Output Industrial Grade Low Power Consumption
(No ratings yet)
Key item features
- The ADXL355 MEMS accelerometer has an output full scale range () of ±2g to ±8g, an optional digital filter of 1 Hz to 1 kHz, and A low noise density of 25 A with A power consumption of less than 200 A. This device achieves the level of performance available in more expensive devices at a lower power consumption and cost.
- The ADXL355 accelerometer provides temperature stability with a zero misalignment coefficient of 0.15mg/C (maximum). This stability minimizes the resources and costs associated with calibration and testing, helping equipment NO. manufacturers achieve higher throughput rates. In addition, sealed packaging ensures that the final product meets repeatability and stability specifications long after it leaves the factory.
- The ADXL355 can perform high-resolution vibration measurement at very low noise,enabling early detection of structural defect through wireless sensor network.low power performance of the new ADXL355 accelerometer can extend battery life while extending product life by reducing the number battery replace.combination of ADXL355's low noise&low power performance now enables low level vibration measurement applications,such structural health monitoring (SHM),to be implemented at cost-effective cost
- ADXL355 is a new series of products with low noise density, 0 G low misalignment drift, low power consumption and 3 MEMS accelerometer, with optional measurement range. The ADXL355 supports the ± 2.048g, ± 4.096g and ± 8.192g ranges, providing industry-leading noise, misalignment drift and long-term stability in the temperature range, enabling applications with minimal calibration effort and extremely low power consumption.
- In addition, the tilt stability of the ADXL355 accelerometer provides excellent repeatability over temperature and time ranges, making it Perfect for directional and navigation systems in UAVs using an inertial measurement unit (IMU) and an inclinometer. These latest accelerometer products provide repeatable tilt measurements in all environments, and they minimize tilt errors in harsh environments without the need for extensive calibration.
Specs
- BrandUnbranded
- FeaturesIndustrial
- ModelADXL355
Current price is USD$74.30
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Ships to
Arrives between Jun 3 - Jun 9
|
Sold and shipped by Zone Technology Shop
4.224852071005917 stars out of 5, based on 169 seller reviews(4.2)169 seller reviews
Free 30-day returns
Other sellers
$81.42
+Free shippingShipping, arrives by Fri, May 29 to Columbus, 43215
Sold and shipped by Buling Life
Free 30-day returns
About this item
Product details
Product features:
0 g misalignment and temperature (all axes) : 0.15 mg/°C (Max)
Low Power VSupply ( Enable)
Measurement mode: 200 A (digital)
Standby mode: 21 A
Digital output characteristic
Digital serial peripheral interface (SPI)/ interface
20-bit analog-to-digital converter (ADC)
A data interpolation program for synchronous sampling
Programmable high pass and low pass digital filters
Mechanical and electrical self-test
Integrated temperature sensor
Voltage range options
Integrated internal regulator VSupply: 2.25V to 3.6V
Internal bypass V1P8ANA, V1P8DIG: 1.8V (typical, ± 10%)
Operating temperature range: -40°C to 125°C
Material: PCB
colour: White+black
Package Contents:
1 set Accelerometer Sensor Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
0 g misalignment and temperature (all axes) : 0.15 mg/°C (Max)
Low Power VSupply ( Enable)
Measurement mode: 200 A (digital)
Standby mode: 21 A
Digital output characteristic
Digital serial peripheral interface (SPI)/ interface
20-bit analog-to-digital converter (ADC)
A data interpolation program for synchronous sampling
Programmable high pass and low pass digital filters
Mechanical and electrical self-test
Integrated temperature sensor
Voltage range options
Integrated internal regulator VSupply: 2.25V to 3.6V
Internal bypass V1P8ANA, V1P8DIG: 1.8V (typical, ± 10%)
Operating temperature range: -40°C to 125°C
Material: PCB
colour: White+black
Package Contents:
1 set Accelerometer Sensor Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- The ADXL355 MEMS accelerometer has an output full scale range () of ±2g to ±8g, an optional digital filter of 1 Hz to 1 kHz, and A low noise density of 25 A with A power consumption of less than 200 A. This device achieves the level of performance available in more expensive devices at a lower power consumption and cost.
- The ADXL355 accelerometer provides temperature stability with a zero misalignment coefficient of 0.15mg/C (maximum). This stability minimizes the resources and costs associated with calibration and testing, helping equipment NO. manufacturers achieve higher throughput rates. In addition, sealed packaging ensures that the final product meets repeatability and stability specifications long after it leaves the factory.
- The ADXL355 can perform high-resolution vibration measurement at very low noise,enabling early detection of structural defect through wireless sensor network.low power performance of the new ADXL355 accelerometer can extend battery life while extending product life by reducing the number battery replace.combination of ADXL355's low noise&low power performance now enables low level vibration measurement applications,such structural health monitoring (SHM),to be implemented at cost-effective cost
- ADXL355 is a new series of products with low noise density, 0 G low misalignment drift, low power consumption and 3 MEMS accelerometer, with optional measurement range. The ADXL355 supports the ± 2.048g, ± 4.096g and ± 8.192g ranges, providing industry-leading noise, misalignment drift and long-term stability in the temperature range, enabling applications with minimal calibration effort and extremely low power consumption.
- In addition, the tilt stability of the ADXL355 accelerometer provides excellent repeatability over temperature and time ranges, making it Perfect for directional and navigation systems in UAVs using an inertial measurement unit (IMU) and an inclinometer. These latest accelerometer products provide repeatable tilt measurements in all environments, and they minimize tilt errors in harsh environments without the need for extensive calibration.
