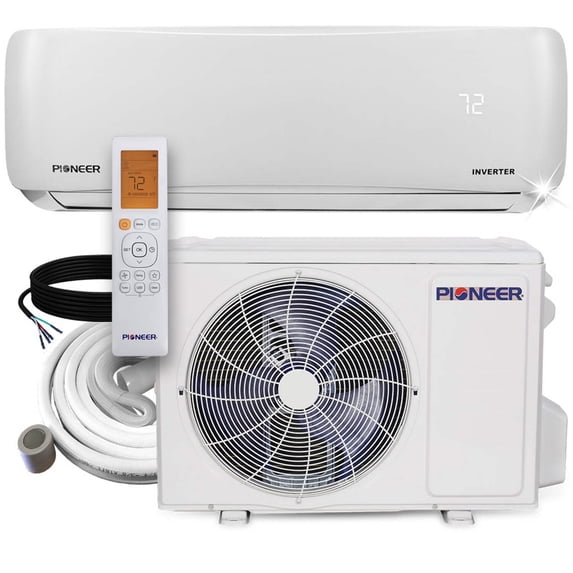

Pioneer® 12,000 BTU 23.1 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Name: Pioneer® 12,000 BTU 23.1 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V
Brand: unknown
SKU: 5559495851
Price: 1360.32 USD
Availability: OutOfStock

(No ratings yet)

Pioneer® 12,000 BTU 23.1 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V Pioneer 12 000 BTU 23 1 SEER2 Ductless Mini Split Inverter Energy Star Air Conditioner Heat Pump System Full Set 230V Pioneer 12 000 BTU 23 1 SEER2 Ductless Mini Split Inverter Energy Star Air Conditioner Heat Pump System Full Set 230V Pioneer 12 000 BTU 23 1 SEER2 Ductless Mini Split Inverter Energy Star Air Conditioner Heat Pump System Full Set 230V Pioneer 12 000 BTU 23 1 SEER2 Ductless Mini Split Inverter Energy Star Air Conditioner Heat Pump System Full Set 230V Pioneer 12 000 BTU 23 1 SEER2 Ductless Mini Split Inverter Energy Star Air Conditioner Heat Pump System Full Set 230V Pioneer 12 000 BTU 23 1 SEER2 Ductless Mini Split Inverter Energy Star Air Conditioner Heat Pump System Full Set 230V

Shape:Upgrade to 50 Foot Installation Kit-Out of stock

Key item features

Pioneer® 12,000 BTU 23.1 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V
OverviewSummary
- Ultra-High Efficiency Inverter++ ductless mini split heat pump system
- Cooling capacity: 12,000 BTU/H with 23.1 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 12,000 BTU/H with 9.3 HSPF2 / 3.5 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Technical InformationCertifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 3,536~12,931 BTU/h
- Cooling SEER2: 23.1 BTU/w
- Cooling EER2: 12.5 BTU/w
- Heating Rated Capacity: 12,000 BTU/h
- Heating Capacity Range: 3,747~12,550 BTU/h
- Heating HSPF2 (Region IV/V): 9.3 / 7.1 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.50 / 2.24 W/W
- Refrigerant Type: R410a
- Suitable Area: 200~450 Sq.F
Indoor Unit Data
- Part Number: WS012GMFI22HLE
- Air Flow (Turbo/Hi/Med/Lo): 323 / 306 / 212 / 147 CFM
- Sound Level (Hi/Med/Lo): 37.5 / 30.0 / 21.5 dB(A)
- Net Dimensions (WDH): 31"-1/2 x 7"-3/8 x 11"-5/8
- Carton Dimensions (WDH): 34"1/2 x 11"-1/4 x 15"
- Net / Gross Weight: 19 / 24 Lbs
Outdoor Unit Data
- Part Number: YN012GMFI22RPE
- Sound Level: 53.5 dB(A)
- Breaker Needed: 15A (double-pole)
- Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8
- Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24"
- Net / Gross Weight: 63.7 / 69 Lbs
Manuals & Downloads
- Series Technical Brochure
- Series User Manual
- Series Installation Manual
- Series Service Manual
- Disassembly Guide
- AHRI Certificate
- Energy Guide
By unknown

Specs

Cooling rate
12000 BTU
Brand
unknown
Mount type
Wall Mount
Volts
230 V
Has written warranty
No
Decibel rating
37.5 dB

Current price is $1,360.32

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

OverviewSummary

Ultra-High Efficiency Inverter++ ductless mini split heat pump system
Cooling capacity: 12,000 BTU/H with 23.1 SEER2 / 12.5 EER2 efficiency
Heating capacity: 12,000 BTU/H with 9.3 HSPF2 / 3.5 COP2 efficiency
Voltage: 208~230 V, 60 Hertz, 1Ph
High Wall Mounted Air Conditioning & Heating System
Variable Speed DC Inverter Operation Mode
Customizable length copper line set with flare connections
Energy-Star Certified
AHRI Estimated Annual Operating Costs:

Cooling: $72.00
Heating: $235.00

What's Included

Indoor Unit
Outdoor Unit
Wireless Remote Control
Various Installation Kit Options Available
Flare Connection Leak Guard Sealer
Installation Manual
User’s Manual
Manufacturer Warranty

Technical InformationCertifications

Performance Data

Power Supply: 208~230V, 60Hz, 1Ph
Cooling Rated Capacity: 12,000 BTU/h
Cooling Capacity Range: 3,536~12,931 BTU/h
Cooling SEER2: 23.1 BTU/w
Cooling EER2: 12.5 BTU/w
Heating Rated Capacity: 12,000 BTU/h
Heating Capacity Range: 3,747~12,550 BTU/h
Heating HSPF2 (Region IV/V): 9.3 / 7.1 BTU/W.h
Heating C.O.P.2 (47°F/5°F): 3.50 / 2.24 W/W
Refrigerant Type: R410a
Suitable Area: 200~450 Sq.F

Indoor Unit Data

Part Number: WS012GMFI22HLE
Air Flow (Turbo/Hi/Med/Lo): 323 / 306 / 212 / 147 CFM
Sound Level (Hi/Med/Lo): 37.5 / 30.0 / 21.5 dB(A)
Net Dimensions (WDH): 31"-1/2 x 7"-3/8 x 11"-5/8
Carton Dimensions (WDH): 34"1/2 x 11"-1/4 x 15"
Net / Gross Weight: 19 / 24 Lbs

Outdoor Unit Data

Part Number: YN012GMFI22RPE
Sound Level: 53.5 dB(A)
Breaker Needed: 15A (double-pole)
Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8
Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24"
Net / Gross Weight: 63.7 / 69 Lbs

Manuals & Downloads

Series Technical Brochure
Series User Manual
Series Installation Manual
Series Service Manual
Disassembly Guide
AHRI Certificate
Energy Guide
