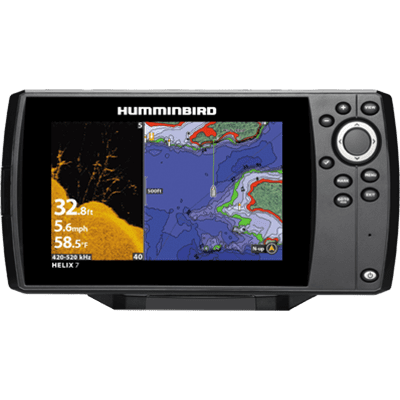

Humminbird Helix 7 CHIRP DI GPS G2N

Manufacture ID: 410330-1

?The HELIX 7 CHIRP DI GPS G2N features a large 7" display with LED backlight, CHIRP Down Imaging and CHIRP 2D sonar. Includes GPS chartplotting with built-in Bluetooth, Ethernet networking capabilities, AutoChart Live with depth, vegetation and bottom hardness mapping, and unit cover.

Features:

- Exclusive Multi-Range Chirp -- View low, mid and high Chirp ranges, either individually or all at once.
- 360 Imaging - Humminbird has you surrounded. 360 Imaging allows you to isolate your sweep, see 5 preset views or see all around you.
- Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.
- SwitchFire Sonar -- Take command of how your sonar returns appear with Clear and Max Modes.
- DualBeam Plus Sonar: Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area
- Internal GPS: GPS antenna built into the head unit
- Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through the My Humminbird section of the site
- High Definition Display: Provides bright, crystal-clear images for easy viewing in harsh sunlight
- Unimap Cartography: The Humminbird UniMap is a built-in map covering the contiguous US coastline, inland lakes and rivers at 30 meters per pixel resolution
- Ethernet: Rig up the ultimate fishing system. Use our 5-Port Ethernet switch to link together multiple Humminbird head units or share transducers
- Networking
- Wireless: Browser Built-In -- Surf the web, monitor weather and stay connected from the dock, offshore waters and in between
- Single SD Card Slot -- Use for advanced cartography or to save your screenshots, sonar recordings and waypoints
- NMEA 2000 ready - Boat performance, weather or water conditions, make sense of it all with networking solutions
- i-Pilot Link is an integrated GPS Trolling System available on select Minn Kota Ulterra, Terrova and PowerDrive V2 motors which enable your motor and Humminbird to communicate
- Autochart Live: Make a map where there is no map. The patent pending AutoChart Live allows you to create digital, detailed maps live and on the water. You can also use it to enhance your existing charts.
- SmartStrike takes you straight to the action by showing you where the fish are biting at any given moment
- NMEA 2000: Get an at-a-glance view of fuel consumption, engine performance and other vessel data.
- Precision GPS
- Wireless: ake wireless control of your Humminbird with the Bluetooth Remote and Dongle
- Micro SD Card Reader: 360 Imaging - Humminbird has you surrounded. 360 Imaging allows you to isolate your sweep, see 5 preset views or see all around you.

Specifications:

- Display Pixel Matrix: 800H X 480V
- Display Type: Color TFT
- Display Colors Grayscale: 16-bit
- Sonar Standard: CHIRP/Down Imaging/DualBeam PLUS
- Standard Sonar Coverage: 16, 28, 45 & 75 @ -10db
- Standard Sonar Frequency: 200/83/455 kHz
- Sonar Optional: 50/83 kHz
- Target Separation: 2.5"
- Power Output RMS: 500 Watts*
- Power Output Peak to Peak: 4000 Watts*
- Depth Capability: 600'
- Temperature: Built In Transducer
- Speed: GPS Speed Included
- Backlight: LED
- Unit Size - Gimbal Mount: 10.54"W x 5.44"H x 1.13"D
- Mount A Type: Gimbal Mount
- Unit Size - Indash Mount: 10.54"W x 5.80"H x 3.68"D
- Mount B Unit Size2: Optional In-Dash
- Mounting Options: Gimbal or Optional In-Dash
- Transducer Standard: XNT 9 DI T
- Transducer Mounting: Transom
- Power Input: 10.8-20 VDC
- Power Draw: 900 mA
- GPS Receiver: Included
- GPS Tracking: Included
- GPS Chartplottin...
