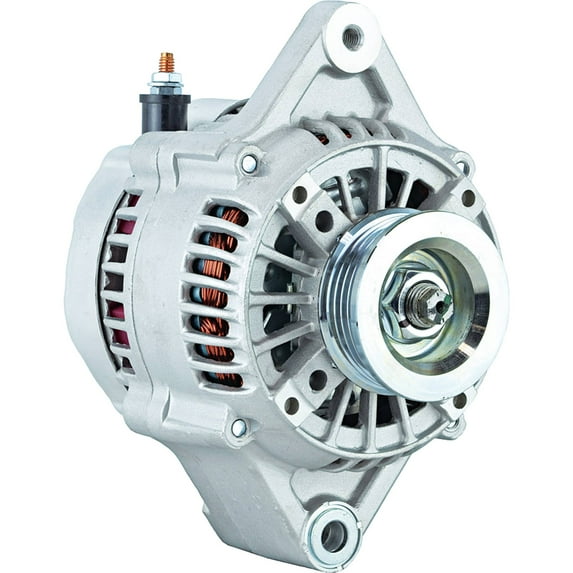

DB Electrical 400-52345 New Alternator for Suzuki Esteem 1996-2001 1.6L 31400-60G12, 31400-60G13; AND0248

DB Electrical 400-52345 12V 70A Alternator Compatible With/Replacement For Suzuki Esteem 1995-2000 334-1305, 334-2023, AND0248, AL4503X, 102211-5020, 102211-5021, 102211-5280, 210-0425, Clockwise

DB Electrical

Whatever you drive, we have the part for it!

DB Electrical is your go-to source for quality electrical parts for vehicles of every shape and size – from motorcycles and ATVs to cars, trucks, and boats. Our engineers closely partner with leading factories to develop electrical components that perform and fit OEM standards.

Selling from the heartland of America located in Kingsport, Tennessee, the people of DB Electrical make it their goal is to get your vehicle back on the road, field, trail, or water. They take great pride in providing top-quality products that keep you moving forward.

Description: Alternator
Volt: 12
Amps: 70
Condition: New
Regulator Clock: 12:00
Rotation Direction: Clockwise
Mount Hole ID 1: M8x1.25
Mount Hole 1 Type: Threaded
Mount Hole 2 Type: Unthreaded
Mounting Ear Thickness: 0.614"
Mounting Ear Thickness: 15.600mm
Mounting Ear 2 Thickness: 2.295"
Mounting Ear 2 Thickness: 58.300mm
Fan Location: Internal
Regulator Location: Internal
Terminal ID 2: B+
Terminal 2 Size: M6x1.00
Terminal ID 3: N/C
Terminal 3 Size: Spade
Terminal ID 4: IG
Terminal 4 Size: Spade
Terminal ID 5: L
Terminal 5 Size: Spade
Polarity: Negative
Number of Grooves: 4
Groove OD: 2.177"
Groove OD: 55.300mm
Pulley Type: Solid
Pulley Outer Diameter: 2.350"
Pulley Outer Diameter: 59.700mm

Replaces OEM Numbers:

AC Delco Tools: 334-1305
Arrowhead: AND0248
Bosch: AL4503X
Denso: 102211-5020, 102211-5280, 210-0425, 9762219-528
J&N Electrical Products: 400-52345
Lester: 13753
Lucas Electric: LRA01739
Suzuki: 34100-60G12

Compatible With/Replacement For:

Suzuki ESTEEM 1995 - 2001
