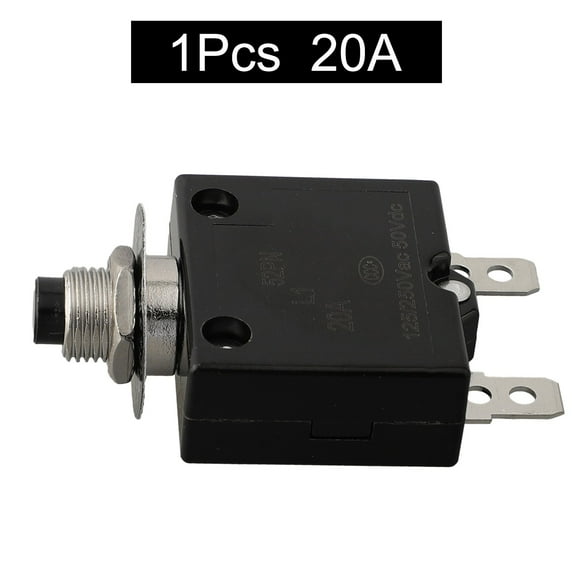

Push Button Thermal Cutout 12-50V DC 125-250V Volt AC

Details:

This is a brand new 20 amp Philmore/Zing Ear push button thermal cutout. The breaker has a reset button that pops up when it trips, and the button cannot be pulled out manually to break the circuit. Also, the thermal breaker does not trip immediately, there is a delay based on the amount of overload.

- Specification -

Rated Voltage: 20A - 50V DC, 250V AC

Dielectric Strength: 1500V RMS

Rated current: 5A, 10A, 15A, 20A, 30A,

Maximum working voltage: 50V DC, 250V AC

Interruption capacity: 2000 amps at 50V DC, 1000 amps at 250V AC

Recommended mounting holes: 0.437" (7/16")

Product application: overload protectors are widely used in electric welding machines, large water dispensers, juice dispensers, coin machines, coffee machines, juicers, vending machines, dehumidifiers, electronic lock systems, lamps, household appliances, high-end furniture, hotels Equipment, lighting engineering, architectural model, bank alarm equipment, access control security, aviation, automobile, computer and peripheral equipment, medical equipment, communication equipment, cleaning equipment, etc.

Package includes:

1* circuit breaker
