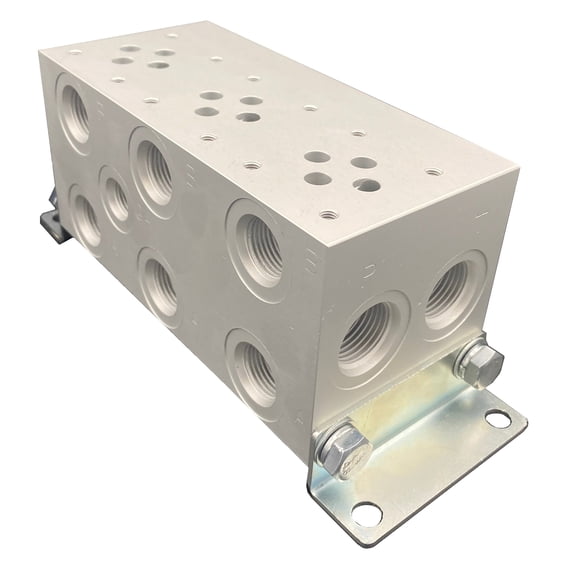

Hydraulic Parallel Valve Manifold Aluminum D03 NG6 Cetop 3 pattern (3 stations, Without Pressure Relief valve)

Parallel bar manifold: Used to mount one or several valves to control one or multiple actuators from the same pressure and tank source. Reduces the amount of fittings, connections and space required to install valves. When actuating valves simultaneously the pressure and flow will go to the actuator with the least resistance. Flow control valves (Fluidhaus series VMFC6) under the valve can be used to control the flow/speed of each actuator independently. Pressure reducing valves (Fluidhaus series VMU6) can be installed under the valves to control the pressure to that circuit/actuator. Pilot operated check valves (Fluidhaus series VMCP6) can be used to hold the actuator movement unless the valve is actuated to pilot open. Standard check valves (Fluidhaus series VMC6) can be added under the valve to prevent the actuator from pushing oil back through the circuit if an external load exceeds the supply pressure. Ports that are not used should be plugged. High volume original equipment manufacturers production available per request at www.hydraulicsinstock.com Highly reliable product with thousands in use in various applications. This product ships from the USA.
