Hero image 0 of 2L Lab Spray Dryer Machine Liquid Drying Machine 220V for Thermosensitive Material, 0 of 9

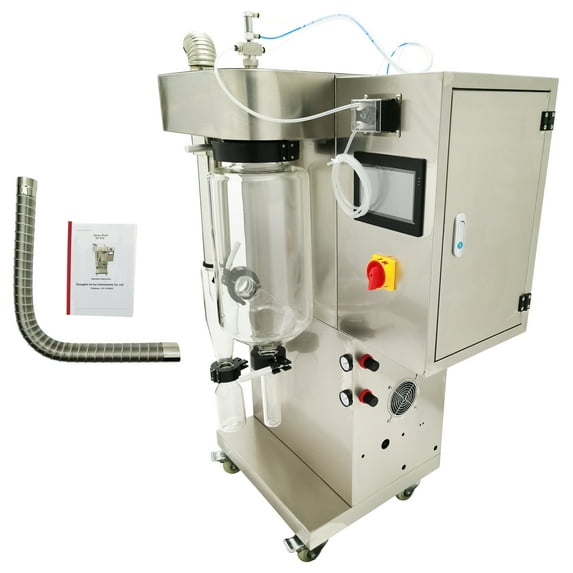

2L Lab Spray Dryer Machine Liquid Drying Machine 220V for Thermosensitive Material

(No ratings yet)

Key item features

Automatic, manual dual mode, PLC control, color touch screen display, English operation interface, all parameters are LCD display: control temperature, air volume, air pressure, pump speed, unplugging frequency.
In order to keep the sample pure, equipped with air inlet filter; After drying, the particle size of the finished dry powder is more uniform, and more than 95% of the dry powder is in the same particle size range.
Jet device can automatically dredge (needle) and frequency can be adjusted. when the nozzle is blocked, the machine can automatically remove the obstacles in order to ensure the continuity of the experiment.
Shutdown protection function: Just press the stop button when shutting down, and the machine will stop running immediately except for the fan to ensure that the equipment will not burn out the heating part due to misoperation (forced closure of the fan).
powder particles diameter is normally distributed with good liguidity and low noise which is less than 60 db according with standards for laboratory.

Specs

Volume capacity
2 L
Brand
intsupermai
Height
57.5"
Weight
207 lbs

Current price is $5,323.61

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Thu, May 21

Sold and shipped by ECOSS INC

4.261160714285714 stars out of 5, based on 448 seller reviews(4.3)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Introduction:
Spray dryer can be used to convert liquid materials directly into micro powder, without filtration, concentration, crushing before drying, and have a wide range of applicability to all solution consumables, such as emulsions, suspensions, etc. Mainly applicable to laboratories, universities, research institutes and food, biology, beverage, chemical, material, pharmaceutical and other enterprise laboratories.

Parameter:
Inlet air temperature control: 30~300 ℃
Outlet air temperature control: 30~150 ℃
Evaporation water: 2000 mL/H
Maximum feeding capacity: 2000 mL/H
Voltage: AC 220V
Number of phases: Single phase
Electric heater power: 3 KW
Fan: 0.5KW (Maximum air volume: 5.6m3/min; Maximum air pressure: 1020Pa)
Air compressor: 0.2KW (Maximum gas production: 4.2m³/h)
Working pressure of compressed air: 2~3 Bar
Nozzle diameter: 0.04" (1.00mm)
Operating temperature: 10~40 ℃
Real-time temperature control (PID): ±1 ℃
Real-time display temperature accuracy: 0.1 ℃
Packing size: 35"*27.5"*57.5" (89cm*70cm*146cm)
Net weight/Gross weight: 207LB(94kg) / 289LB(131kg)

Items Included: 056809
Lab Mini Spray Dryer Machine

Automatic, manual dual mode, PLC control, color touch screen display, English operation interface, all parameters are LCD display: control temperature, air volume, air pressure, pump speed, unplugging frequency.
In order to keep the sample pure, equipped with air inlet filter; After drying, the particle size of the finished dry powder is more uniform, and more than 95% of the dry powder is in the same particle size range.
Jet device can automatically dredge (needle) and frequency can be adjusted. when the nozzle is blocked, the machine can automatically remove the obstacles in order to ensure the continuity of the experiment.
Shutdown protection function: Just press the stop button when shutting down, and the machine will stop running immediately except for the fan to ensure that the equipment will not burn out the heating part due to misoperation (forced closure of the fan).
powder particles diameter is normally distributed with good liguidity and low noise which is less than 60 db according with standards for laboratory.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Volume capacity

2 L

Brand

intsupermai

Height

57.5"

Weight

207 lbs

Warranty

Warranty information

30 days return and one year limited warranty with lifetime technical support

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
