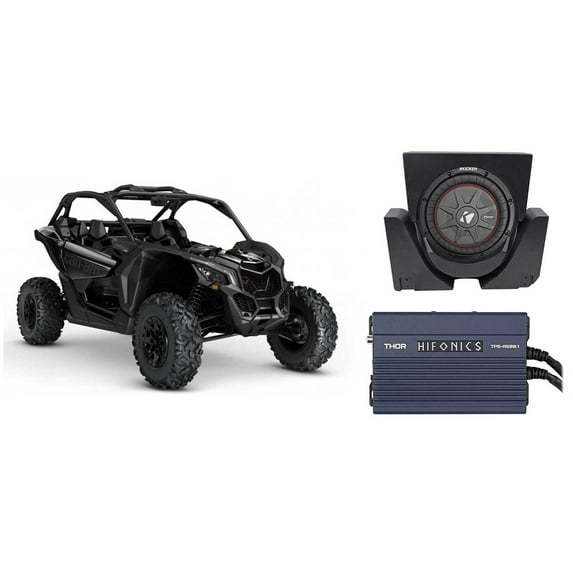

10" Shallow Kicker Subwoofer for Can-Am MAVERICK X3/X3 Max+Amp+Enclosure
(No ratings yet)
Key item features
Package Includes:
(1) SSV Can-Am MAVERICK X3/X3 Max 10" Under Seat Shallow Subwoofer Sub BoxEnclosure
(1) Kicker 43CWRT101 COMPRT10 10" 800W 1-Ohm DVC Shallow Car Subwoofer Sub
(1) Hifonics TPS-A500.1 500w Mono Marine Sub Amplifier For Polaris RZR/ATV/UTV/Cart
Video of 43CWRT101:
Features/Specifications:
Kicker 43CWRT101 10" 800 Watt Dual Voice Coil 1-Ohm Car Audio Subwoofer
Power Handling :
Peak : 800 watts
RMS : 400 watts
Size : 10"
Impedance : Dual 1-Ohm
True shallow-mount subwoofer great for compact cars or even motorcyclesaddlebags
Suitable for the trickiest installations
Large-diameter, progressive-roll spider
Inverted-bumped back plate and bumped top plate for full voice-coil clearanceand excursion
High-temp coil wire winding around a high-mass, solid pole piece
Double venting for max cool
Injection-molded polypropylene cone and tough Santroprene® surround thatinterlocks with front gasket
Dual pair of spring-loaded wire terminals custom-designed for shallow mount
Weather-proof for outdoor powersports applications
Frequency Response : 25 - 500Hz
Sensitivity : 84.8dB @ 1w/1m
Mounting Depth : 3-7/16"
Mounting Diameter : 9-1/8"
Min Sealed Box Vol : 0.4 cu. ft.
Max Sealed Box Vol : 1.25 cu. ft.
Min Vented Box Vol : 1.25 cu. ft.
Max Vented Box Vol : 1.75 cu. ft.
Features of TPS-A500.1:
Hifonics TPS-A500.1 500w Mono Marine Sub Amplifier For Polaris RZR/ATV/UTV/Cart
Marine Grade Protection: YES - Amplifiers are ABYC & ASTM certified whichdefines that marine amplifiers must use conformal coated PC boards to resistcorrosion from salt spray & moisture.
Pre-Amp Circuitry: Low Noise Pre-Amplifier Stage - Special preamplifier reducesincoming noise from source units dramatically improving sound quality
Inputs: 1 Pair, RCA Nickel-Plated - High temperature impact resistant with hexscrew terminals that allow for secure connections and is erosion resistant
Operation Mode: Mono operation - Designed to power 1 subwoofer or subwoofersystem
Crossover / Signal Shaping: LPF - Complete control of amplifier signal,essential when using two or more amplifiers
Class / Topology: Full Range Class D - Highly efficient circuit topology whichhelps the amplifer develop a lot of power in a very small heatsink.
Output Devices Technology: PWM MOSFET Power Supply - Stable power through the PCboard with minimal heat generation
Specifications:
Class: Full Range Class D
Variable Voltage: 0.2V~9V
Signal to Noise Ratio: >100dB
Frequency Response: 10Hz-300Hz
Crossover Type: Electronic 12dB Per Octave
Crossover Frequency Range CH1 & CH2: Switch Low Pass 300 Hz
Bass Boost: 0-12dB@45Hz
Subsonic Filter: 60Hz
Power @ 2-Ohms: 1 x 500W
Power @ 4-Ohms: 1 x 250W
Total Channels: Mono
Audio Inputs: RCA
Power Terminal 12v/GND: Molex 10 ga
Speaker Terminal Wire Gauge: Molex Plug Connector
Fusing: 1 x 30 Amps
Certifications: Marine & Powersports
Dimensions: 3.70 X 5.51 X 1.77 inches (9.4 X 14.0 X 4.5 cm)
Weight: 2.09 lbs (0.95 kg)
Specs
Current price is USD$493.95
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
Package Includes:
(1) SSV Can-Am MAVERICK X3/X3 Max 10" Under Seat Shallow Subwoofer Sub BoxEnclosure
(1) Kicker 43CWRT101 COMPRT10 10" 800W 1-Ohm DVC Shallow Car Subwoofer Sub
(1) Hifonics TPS-A500.1 500w Mono Marine Sub Amplifier For Polaris RZR/ATV/UTV/Cart
Video of 43CWRT101:
Features/Specifications:
Kicker 43CWRT101 10" 800 Watt Dual Voice Coil 1-Ohm Car Audio Subwoofer
Power Handling :
Peak : 800 watts
RMS : 400 watts
Size : 10"
Impedance : Dual 1-Ohm
True shallow-mount subwoofer great for compact cars or even motorcyclesaddlebags
Suitable for the trickiest installations
Large-diameter, progressive-roll spider
Inverted-bumped back plate and bumped top plate for full voice-coil clearanceand excursion
High-temp coil wire winding around a high-mass, solid pole piece
Double venting for max cool
Injection-molded polypropylene cone and tough Santroprene® surround thatinterlocks with front gasket
Dual pair of spring-loaded wire terminals custom-designed for shallow mount
Weather-proof for outdoor powersports applications
Frequency Response : 25 - 500Hz
Sensitivity : 84.8dB @ 1w/1m
Mounting Depth : 3-7/16"
Mounting Diameter : 9-1/8"
Min Sealed Box Vol : 0.4 cu. ft.
Max Sealed Box Vol : 1.25 cu. ft.
Min Vented Box Vol : 1.25 cu. ft.
Max Vented Box Vol : 1.75 cu. ft.
Features of TPS-A500.1:
Hifonics TPS-A500.1 500w Mono Marine Sub Amplifier For Polaris RZR/ATV/UTV/Cart
Marine Grade Protection: YES - Amplifiers are ABYC & ASTM certified whichdefines that marine amplifiers must use conformal coated PC boards to resistcorrosion from salt spray & moisture.
Pre-Amp Circuitry: Low Noise Pre-Amplifier Stage - Special preamplifier reducesincoming noise from source units dramatically improving sound quality
Inputs: 1 Pair, RCA Nickel-Plated - High temperature impact resistant with hexscrew terminals that allow for secure connections and is erosion resistant
Operation Mode: Mono operation - Designed to power 1 subwoofer or subwoofersystem
Crossover / Signal Shaping: LPF - Complete control of amplifier signal,essential when using two or more amplifiers
Class / Topology: Full Range Class D - Highly efficient circuit topology whichhelps the amplifer develop a lot of power in a very small heatsink.
Output Devices Technology: PWM MOSFET Power Supply - Stable power through the PCboard with minimal heat generation
Specifications:
Class: Full Range Class D
Variable Voltage: 0.2V~9V
Signal to Noise Ratio: >100dB
Frequency Response: 10Hz-300Hz
Crossover Type: Electronic 12dB Per Octave
Crossover Frequency Range CH1 & CH2: Switch Low Pass 300 Hz
Bass Boost: 0-12dB@45Hz
Subsonic Filter: 60Hz
Power @ 2-Ohms: 1 x 500W
Power @ 4-Ohms: 1 x 250W
Total Channels: Mono
Audio Inputs: RCA
Power Terminal 12v/GND
Package Includes:
(1) SSV Can-Am MAVERICK X3/X3 Max 10" Under Seat Shallow Subwoofer Sub BoxEnclosure
(1) Kicker 43CWRT101 COMPRT10 10" 800W 1-Ohm DVC Shallow Car Subwoofer Sub
(1) Hifonics TPS-A500.1 500w Mono Marine Sub Amplifier For Polaris RZR/ATV/UTV/Cart
Video of 43CWRT101:
Features/Specifications:
Kicker 43CWRT101 10" 800 Watt Dual Voice Coil 1-Ohm Car Audio Subwoofer
Power Handling :
Peak : 800 watts
RMS : 400 watts
Size : 10"
Impedance : Dual 1-Ohm
True shallow-mount subwoofer great for compact cars or even motorcyclesaddlebags
Suitable for the trickiest installations
Large-diameter, progressive-roll spider
Inverted-bumped back plate and bumped top plate for full voice-coil clearanceand excursion
High-temp coil wire winding around a high-mass, solid pole piece
Double venting for max cool
Injection-molded polypropylene cone and tough Santroprene® surround thatinterlocks with front gasket
Dual pair of spring-loaded wire terminals custom-designed for shallow mount
Weather-proof for outdoor powersports applications
Frequency Response : 25 - 500Hz
Sensitivity : 84.8dB @ 1w/1m
Mounting Depth : 3-7/16"
Mounting Diameter : 9-1/8"
Min Sealed Box Vol : 0.4 cu. ft.
Max Sealed Box Vol : 1.25 cu. ft.
Min Vented Box Vol : 1.25 cu. ft.
Max Vented Box Vol : 1.75 cu. ft.
Features of TPS-A500.1:
Hifonics TPS-A500.1 500w Mono Marine Sub Amplifier For Polaris RZR/ATV/UTV/Cart
Marine Grade Protection: YES - Amplifiers are ABYC & ASTM certified whichdefines that marine amplifiers must use conformal coated PC boards to resistcorrosion from salt spray & moisture.
Pre-Amp Circuitry: Low Noise Pre-Amplifier Stage - Special preamplifier reducesincoming noise from source units dramatically improving sound quality
Inputs: 1 Pair, RCA Nickel-Plated - High temperature impact resistant with hexscrew terminals that allow for secure connections and is erosion resistant
Operation Mode: Mono operation - Designed to power 1 subwoofer or subwoofersystem
Crossover / Signal Shaping: LPF - Complete control of amplifier signal,essential when using two or more amplifiers
Class / Topology: Full Range Class D - Highly efficient circuit topology whichhelps the amplifer develop a lot of power in a very small heatsink.
Output Devices Technology: PWM MOSFET Power Supply - Stable power through the PCboard with minimal heat generation
Specifications:
Class: Full Range Class D
Variable Voltage: 0.2V~9V
Signal to Noise Ratio: >100dB
Frequency Response: 10Hz-300Hz
Crossover Type: Electronic 12dB Per Octave
Crossover Frequency Range CH1 & CH2: Switch Low Pass 300 Hz
Bass Boost: 0-12dB@45Hz
Subsonic Filter: 60Hz
Power @ 2-Ohms: 1 x 500W
Power @ 4-Ohms: 1 x 250W
Total Channels: Mono
Audio Inputs: RCA
Power Terminal 12v/GND: Molex 10 ga
Speaker Terminal Wire Gauge: Molex Plug Connector
Fusing: 1 x 30 Amps
Certifications: Marine & Powersports
Dimensions: 3.70 X 5.51 X 1.77 inches (9.4 X 14.0 X 4.5 cm)
Weight: 2.09 lbs (0.95 kg)
