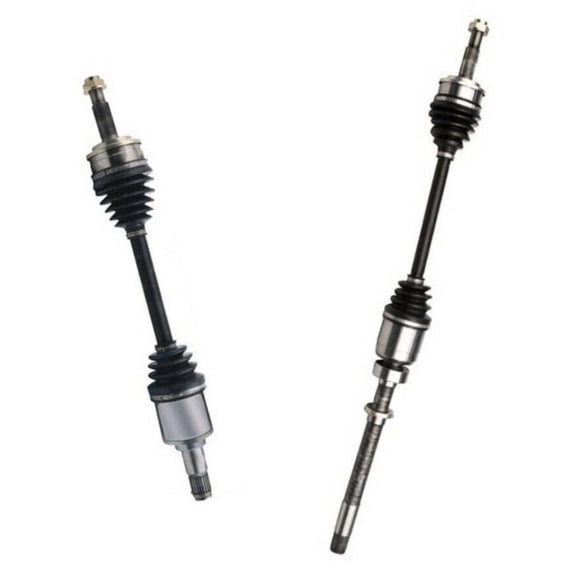

Geelife Front CV Axle Shaft Pair 2 For Toyota 2006-2012 RAV4 Sport Utility 2.4L 2.5L

Front New CV Axle Shaft Assembly Neoprene Boots Set of 2 Driver and Passenger Side

Front CV Axle Shaft Pair 2 for 2006-2009 2010 2011 2012 Toyota RAV4 2.4L 2.5L
Qty. | Part | Description
Compatibility Chart
Make | Model | Year | Notes | Position
Toyota | RAV4 | 2006 - 2008 | 2.4L | 4-Wheel Drive | Front
Toyota | RAV4 | 2009 - 2012 | 2.5L | 4-Wheel Drive | Front
Product Details
Weight: 37.3 lbs
Height: 4.7 in
Width: 9.4 in
Length: 28 in
Surface Finish: Black Coating
Shaft Material: 40CR
Output Shaft Connection Style: Spline
Number of Outboard Splines: 26 Teeth
Number of Inboard Splines: 24 Teeth
Items Included: N/A
ISO Specification: ISO 16949
Input Shaft Connection Style: Spline
Hazardous Material: No
Hardware Included: No
Grease Type: Molybdenum Disulfide Lithium Grease
Fitment Type: direct replacement
Drive Type: FWD,AWD
Cotter Pin Included: No
Boot Color: Black
Axle Nut Thread Size: M22 x 1.5
Axle Nut Locking Type: Open Groove
Axle Nut Included: Yes
Axle Nut Hex Size: 1.18 in / 30 mm
ABS Ring Included: No

New CV Axle Assemblies
Distributed by
ISO / IATF 16949 certified, direct fit and made from high quality materials to meet orginal specifications
Built to last - temperature and pressure resistant grease prevents friction and wear
Premium quality neoprene boots with secure clamps prevent grease leakage and premature boot failure
When replacing CV Axles in pairs, complete the installation on side before removing the axle from the other side, otherwise the differential gears may become misaligned which requires the transaxle to be taken apart so the gears can be reassembled
Axles should always be replaced in pairs (Passenger and Driver). This reduces the overall time required to replace two axles at different times
Professional Installation is Highly Recommended
