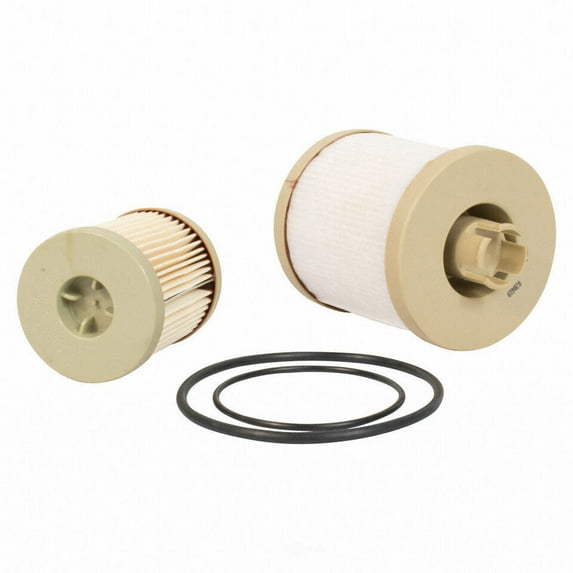

Fuel Filter FD-4616 For Ford F350 F450 Super Duty 6.0L Powerstroke Diesels

OE Part Number:

FD-4616

1x Fuel Filter Kit

1. Remove the drain plug uses a 6 mm Allen wrench for the water-fuel separator and drain the fuel into a container.

    Allow the Horizontal Fuel Conditioning Module to drain completely,then fish out the drain plug and dispose of the fuel.

3. Remove the fuel filter from the cap by simply pulling it out. There is a retaining clasp on the fuel filter that

    snaps into the fuel filter cap.Remove and replace the o-ring from the fuel filter cap.

4. Install the new fuel filter, minding the orientation of the locking clasp and the o-ring.

   The o-ring side of the fuel filter is not inserted into the cap. The fuel filter should lock into the cap.

   Lightly coat both o-rings (cap and bottom of filter) of the new fuel filter with clean motor oil before installing into the

   Horizontal Fuel Conditioning Module.  Torque cap to 19 lb-ft (25 N-m).

5. Turn the key into the ""run"" position (as you would to initiate the glow plug sequence) for 30 seconds, then back to the ""off"" position.
