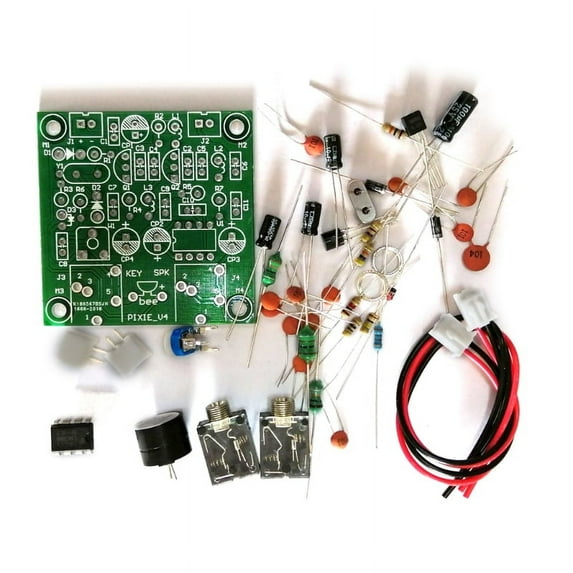

TINYSOME 4.1 DIY PIXIE Kit CW Radio Shortwave Transmitter Receiver Module Board Set

(No ratings yet)

Key item features

DIY kit: This product is a self-assembled kit that supports CW modulation and is suitable for point-to-point communication.
Multifunctional module: The product integrates transmitter and receiver functions, enabling the transmission and reception of radio signals.
Broadband coverage: The product operates in the frequency ranges of 7.023MHz to 7.026MHz, providing stable shortwave communication services and strong anti-interference capabilities.
Function: It can easily capture frequency, greatly facilitating beginner enthusiasts to enjoy the fun of radio!
Amateur radio: As an amateur radio shortwave transmitter and receiver module, it can meet the needs of radio enthusiasts for shortwave communication.

Specs

Toy replacement part & accessory type
Replacement Parts
Brand
TINYSOME
Material
Printed Circuit Board
Volts
9 V
Piece count
1
Model
4.1

Current price is $10.54

Price when purchased online

Out of stock

How do you want your item?

Out of stock

About this item

Product details

Features:
DIY kit: This product is a self-assembled kit that supports CW modulation and is suitable for point-to-point communication.
Multifunctional module: The product integrates transmitter and receiver functions, enabling the transmission and reception of radio signals.
Broadband coverage: The product operates in the frequency ranges of 7.023MHz to 7.026MHz, providing stable shortwave communication services and strong anti-interference capabilities.
Function: It can easily capture frequency, greatly facilitating beginner enthusiasts to enjoy the fun of radio!
Amateur radio: As an amateur radio shortwave transmitter and receiver module, it can meet the needs of radio enthusiasts for shortwave communication.

Specifications:
Material: Printed Circuit Board
Board Size: Approx. 5x5cm/1.96x1.96inch
Power supply: DC9V-14V
Antenna: 50ohm, unbalanced
Receive quiescent current: 10mA@9V
Transmit power: 0.8W@9V, 1.2W@12V
Frequency ranges:transmitting local oscillator 7.023MHz, receiving local oscillator 7.023-7.026MHz
Working modes: CW

Note:
This kit is not soldered, and all the shipped electronic components are loose part, customers need to DIY assemble them themselves (the finished product pictures displayed in our store are for reference only when purchasing).
Please allow 1-2cm errors due to manual measurement.
Please allow for slight color differences due to different display resolution.

Package includes:
1 Piece 4.1 Version PIXIE Kit CW Transceiver Shortwave Radio Station 7.023MHz-7.026MHz with Buzzer Transceiver

DIY kit: This product is a self-assembled kit that supports CW modulation and is suitable for point-to-point communication.
Multifunctional module: The product integrates transmitter and receiver functions, enabling the transmission and reception of radio signals.
Broadband coverage: The product operates in the frequency ranges of 7.023MHz to 7.026MHz, providing stable shortwave communication services and strong anti-interference capabilities.
Function: It can easily capture frequency, greatly facilitating beginner enthusiasts to enjoy the fun of radio!
Amateur radio: As an amateur radio shortwave transmitter and receiver module, it can meet the needs of radio enthusiasts for shortwave communication.
