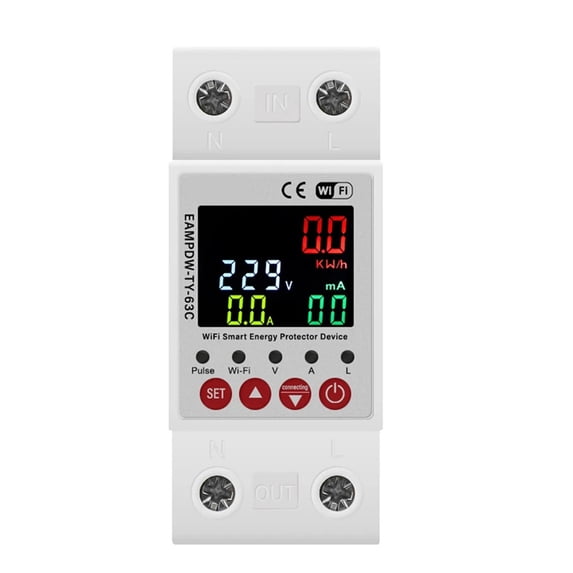

63A 230V 3IN1 Display Din Rail Adjustable Over Voltage Current Protective Device

Features:

*63A 230V 3IN1 Display Din Rail Adjustable Over Voltage Current Under Voltage Protective Device Protector Relay 220V KWH Red Blue

*Voltage display

*Current display

*kWh display

Specifications:

Rated Voltage：220V

Type：Voltage relay

Model Number：EAPDX-63V AE

Under voltage protection：80V-210V (adjustable)

Over voltage proteciton：230V-300V (adjustable)

Over current protection：1A-63A (adjustable)

Reconnect time：1s-600s

Rated supply voltage：AC 220V

Operating Voltage Range：AC 80V-400V

Operating frequency：50/60Hz

Tolerance range：2%

Package Included:

1x Protector Relay

Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
