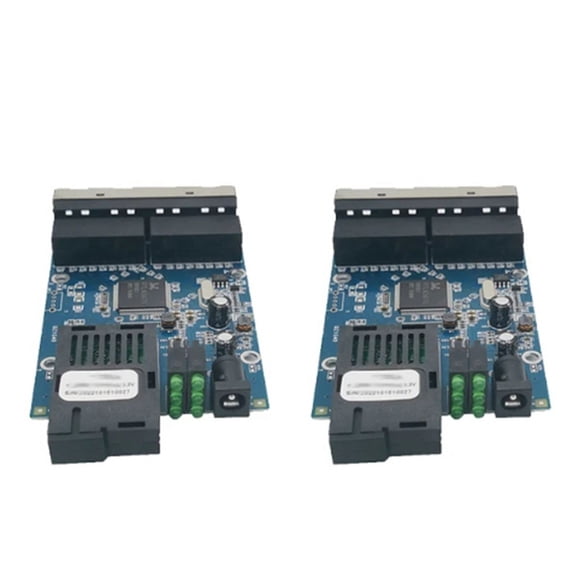

Fiber Ethernet Switch Media Converter Fiber Optical Media Fiber Port 1F4E 1G4E PCBA 10/100/1000M

6.Support IEEE802.1d Spanning Tree
7.Support high performance function on each port
8.Support 5V-12V voltage input
9.Support IEEE 802.3x flow control and back pressure control
10.Require no configuration and instantly operate as soon as you power it up
11.Low power consumption chip with heat sink built in to longtime efficient operation
Standards IEEE802.3 10Base-T
IEEE802.3u100Base-TX/FX
IEEE802.3z1000Base-SX/LX
IEEE802.3x flow control
IEEE802.1p
IEEE802.1d Spanning Tree
Connector: RJ45
Ethernet Port Data Rate:10/100M or 10/100/1000M
Distance: 100m
UTP Type: UTP-5E or higher level
Fiber Port Connector: SC/FC//SFP slot
Data Rate: 155M or 1.25Gbps
Optical Wavelength: 850nm/1310nm/1490nm/1550nm
Distance: 550m~120km
Performance Processing Type: Store and Forward
Table Size:4K/6K/8K
Buffer Space: 500kbs/1Mbit/2Mbit
Jumbo Packet: 1518 bytes
Back bandwidth: 3.8G/5.6G/7.2G
Time Delay: Less than 150μs
Colour:blue
Material:PC+metal

Package Contents:
1 pair x Converter board(Due to different product batches, the appearance may be different, which does not affect use.)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
