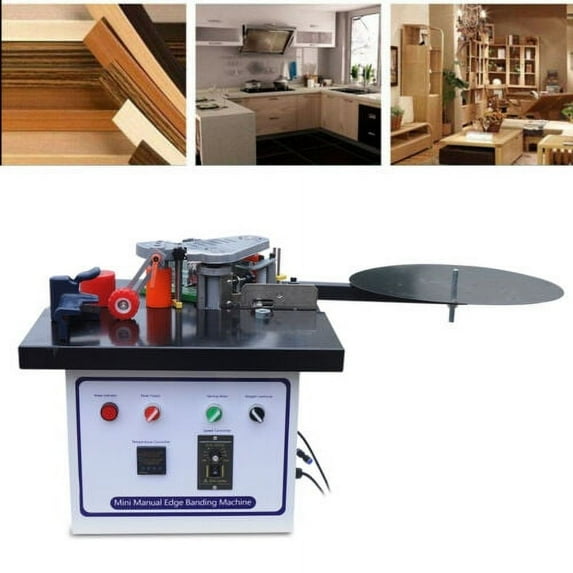

Woodworking Edge Bander Banding Machine Self Cutting Double Gluing Edge Machine

Description:

This product is particularly suitable for the decoration industry and can be used in cabinets, wardrobes, and wooden doors. This is a very practical desktop edge banding machine, double-sided coating and stronger edge seal. Automatic cutting of bandage material, adjustable speed to meet various work needs.

Notice:

1. This machine must be use medium mix glue 150-180 degrees.

2. Please note that this sideband has no trimming function and is not suitable for pre-glued bandage materials. The edge band needs to be connected to the air pump to automatically cut the band material.

Advantages:

▶ [Special switch] The edge band is equipped with a micro switch and a self-locking foot switch, which is suitable for cutting linear or curved edge banding materials. Effectively improve work efficiency.

▶ [Material fixing]-The edge band is equipped with professional material fixing equipment. For example, when sealing large plate materials, the fixing device can press the plate and fix it in a good position to prevent the overhanging part of the plate from relaxing, affecting the quality and speed of the edge banding.

▶ [Overload protection]-The motor has an automatic protection system. When the glue temperature is too low, the motor will automatically break the belt, effectively extending the life of the engine.


Specifications:

Rated voltage: 110V

Rated power: 1200W

Heating time: 5 ~ 10 minutes

Glue capacity: 1000ml

Edge height: 7 ~ 60mm

Edge sealing speed: 2 ~ 6m / min

Edge thickness: 10mm-60mm

Continuous working time: ≤10h

Outline size: 20×19.6×18.7 inch

Speed regulation: stepless electronic speed regulation

Edge plate shape: curve, straight line

Gluing method: double-sided coating

Tape breaking mode: automatic tape breaking

Package size: 52×52×65cm

Gross weight: 28kg

Package Content:

1 × Edge Banding Machine Set

1 × Instruction Manual
