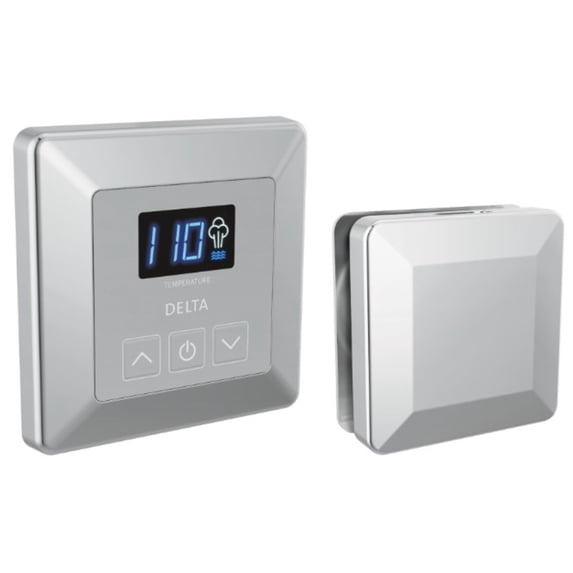

Delta Ep103350 Simplesteam Transitional Square Steam Shower Control Unit And Steam Head -

Delta EP103350 Features:

• Covered under Delta's 2 year limited warranty
• Preset time and programmable temperature
• Digital display of ambient and set temperature
• Lumicoat Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without chemicals or cleaners
• Icons for system status - heating and set time
• Steamline should protrude 1/4" to 1/2" from finished surface
• Steam head to be mounted 12" - 18" above the finished floor or 6" above the rim of the tub and as far from the seating area as possible
• Includes silicone cover
• Essential oil reserve on top of steam head
• Steam control unit must mount inside the steam room
• Mount control near seating area and not above steam head
• Control should be mounted 48" above the floor
• Required electrical service: low-voltage connection from 5P-EST series steam generators via multi-conductor cable (supplied with generator)

Control Unit Specifications:

• Height: 2-3/4"
• Width: 2-3/4"
• Depth: 5/8"
• Installation Hole Size: 1-1/2"

Steam Head Specifications:

• Height: 3-3/16"
• Width: 3-3/16"
• Depth: 1-1/4"
• Water Connection: 3/4" Copper or Brass NPT male thread
