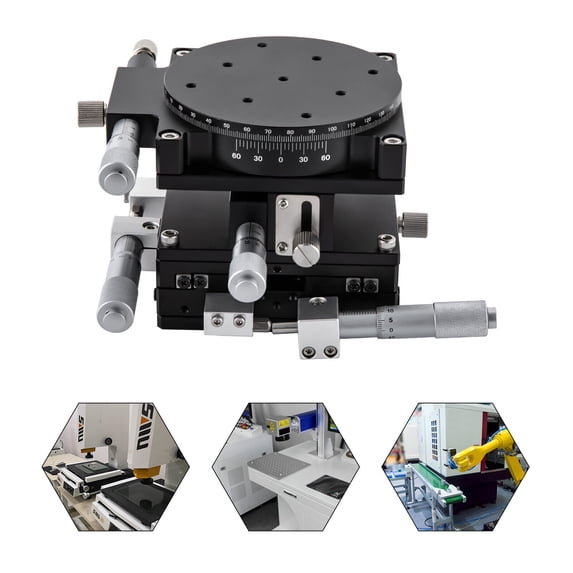

4 Axis Manual Linear Positioning Stage Bearing Tuning Platform Sliding Table 90mmx90mm
Key item features
- High Precision: It Adopts High Precise Micrometer, Cross Roller Guide, and Solid Square Base, Ensuring Stable Movement and High Precision Which Can Be Refined to 0.01mm, so It Is Very Suitable for High-precision Devices. You Can Use It with Confidence.
- Easy to Use: Fine and Coarse Adjustment Knob, Locking Knob, Highly Precise Micrometer, and Clear Markings Can Help You Easily Operate, and Achieve Precise Regulation, Adding More Convenience to Your Work.
- Effortless to Clean: the Smooth Surface and Simple Structure Allow You to Easily Clean the Dust with a Dry Rag.
- Compact and Lightweight: the Compact Size(6.37*5.42*3.35 in) and Lightweight(4.4lbs) Allows It Can Be Free-stood and Mounted on a Desktop Without Taking up Too Much Space and Allow for Easy Carrying Any Place You Want.
Specs
- Stroke Length12.5 mm
- MaterialAluminum Alloy
- BrandUnbranded
- ModelLt90-Lm
- Free shipping
Free 30-day returns
How do you want your item?
About this item
Product details
Manual X Y Z R Micrometer Adjust Bearing Table Standard Linear Positioning Stage
Description
This Manual Linear Position Stage Is Made of High-quality Aluminum Alloy, Which Is Strong, Durable, and Not Easy to Deform, Ensuring a Long Service Life. It Boasts Excellent Performance, Improving the Precision and Efficiency of Checking, Saving Your Time and Energy. the Simple Structure and Smooth Surface Make It Very Easy to Clean. It Will Be Your Ideal Choice for the Manual Linear Stage.
Key Features
Sturdy and Durable: the High-quality Aluminum Alloy with Oxidation Makes It Resistant to Rust, Corrosion, Deformation, Tear, and Wear, Ensuring Sufficient Durability.
High Availability: It Can Be Matched with Many Types of Sliding Tables, Such As Single-axis, Double-axis, Z-axis, C-axis, R-axis, Etc, Meeting Your Various Needs, and Improving Your Working Efficiency and Quality.
Details
Locking Screw: You Can Easily Fix the Sliding Table Surface with the Locking Screw, Enhancing the Stability of the Product.
Rounded Corners: Round Corners Provide a Comfortable and Safer Touch During Use.
Application
It Is Suitable for Optical Instruments, Measuring Devices, Semiconductor Manufacturing Equipment, Testing Machines, Microscopes, Conveyors, Processing Machines, Printing Machines, Laboratory Precision Testing, Mechanical Equipment Positioning and Movement, Various Fiber Coupling, Optical Waveguide Alignment, Core Alignment, Packaging Systems, Capacitive Touch Screen Production Equipment, Tooling Fixtures, Optical Instrument Devices, Non-standard Equipment.
Specification
Material: Aluminum Alloy
Surface Treatment: Oxidation
Model: Lt90-Lm
Color: Black
Style: Modern
Numbers of Items: 1
Mount Type: Desktop
Operation Method: Manual
Moving Direction: X,Y, Z, R Axis
Operating Temperature: 10~50 ° C/50~122℉
Recommended Operating Temperature: 22±5°C/71.6± 41℉
Travel: Xy: ±12.5mm/0.49in, Z: 10mm/0.39in, R Axis:360° Coarse Tuning (±5° Fine Tuning)
Load: 49n (5kgf)
Minimum Marks: 0.01mm/0.00039in
Accuracy: 0.03 Mmmm
Net Weight: 2kg/4.4 Lbs
Gross Weight: 2.2kg/4.8 Lbs
Countertop Diameter: 9cm/3.54in
Product Size: 16.19*13.78*8.5cm/6.37*5.42*3.35 in
Package Size: 15*15*15cm/5.9*5.9*5.9 in
Package Included
1* Manual Linear Position Stage
Notes
This Series of Products Is Composed of High-precision Components. Please Avoid Using Them in Environments Such As Extremely High and Low Temperatures, Severe Temperature Fluctuations, Direct Sunlight, High Humidity, High Dust, High Vibration, High Impact, and an Easy Fogging Environment.
If More than the Specified Load Is Applied to the Countertop, the Accuracy Will Decrease and the Machine May Even Be Damaged. Please Try to Avoid It As Much As Possible.
