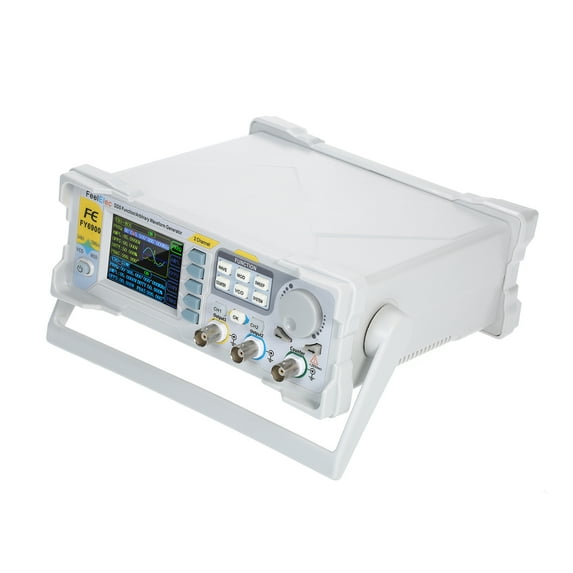

60MHz Function Signal Generator High Precision Digital DDS Dual-channel Function Signal/Arbitrary Waveform Generator Pulse Signal Source 250MSa/s Frequency Meter VCO Burst AM/PM/FM/ASK/FSK/PSK Modulation DDS Generator Function Source Generator: Adopt MagicPulse Technology, Low Jitter(RMS)<200ps.AM, , PM, ASK, FSK and PSK modulations.-12V～+12V DC Offset function. Resolution 0.001V.The instrument uses 14-bit high-speed D/A converter chip (5Vpp output quantization error is less than 1mV), 250MSa/s sample rate, 14bits vertical resolution.Min amplitude resolution can be to 1mV. Amplitude range is 1mV～24Vpp.can be achieved by an external input signal: voltage controlling frequency, voltage controlling amplitude, voltage controlling offset, voltage controlling duty cycle and PWM modulations.Adopt ABS shell with table type design. Use 100-240V (AC) wide range voltage power supply.Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits; (The longer the waveform storage depth, the more detail the waveform is saved, and the signal details can be restored with high precision.)support waveform copy and state copy between channels.Sine, (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, CMOS(0～12V), Four channels TTL, Exponential Rise, Exponential Fall, Noise, DC etc.2.4 inch TFT color LCD with 320*240 resolution, simultaneously display parameters and graphics of CH1 and CH2.it can sweep 4 properties of signals including frequency, amplitude, offset and duty cycle; It has Linear and Logarithm two sweep types; 0.01S～999.99S sweep time; Up, Down and roundtrip sweep directions.it has 2 coupling measure modes including DC coupling and AC coupling. This design can solve inaccuracy problem of AC coupling.Duty-cycle of each channel can be adjusted independently 0.01%-99.99%, the adjusting resolution is 0.01%.Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals.Provide powerful waveform editing PC software. Users can download arbitrary waveform to this instrument after edit through PC program which is included in user .Standard dual full functional channels which are equivalent to two independent generators.Support two or more signal generators connected to achieve multi-channel output, the maximum support 16-channel synchronous output, the phase between each channel can be adjusted.there has Manual Trigger, internal CH2 Trigger, and External Trigger for your options. It can output 1～1048575 pulse trains.all functions can be controlled by PC program and the communication protocol is open for secondary development.it can save 20 sets user-set parameters and can be loaded at any time.all channels can work more than 60 seconds when the load is short-circuited.Precisely adjust the phases of the two channels. Precision can be 0.01°.

Specification:
Output Amplitude Range: 1mV～24Vpp(20M,60M), 1mV～25Vpp(100M)
Sampling Rate: 250MSa/s(20M,60M), 300MSa/s(100M)
Non-Volatile Storage: Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64
Vertical Resolution: 14 bits
Package Size: 27 * 21 * 9.5cm / 10.63 * 8.27 * 3.75in
Package Weight: 1065g / 37.51oz
Waveform Length: 8192 points * 14bits
Item Size: 210 * 195 * 75mm / 8.27 * 7.68 * 2.96in (L*W*H)
Modulation Type: AM, , PM, ASK, FSK, PSK
Display: 2.4 inch (320*240), TFT color display
Minimum Pulse Width: 20ns
Item Weight: 611g / 21.56oz
Plug & Model: EU Plug FY6900-20M / EU Plug FY6900-60M / EU Plug FY6900-100M / US Plug FY6900-20M / US Plug FY6900-60M / US Plug FY6900-100M / AU Plug FY6900-60M (Optional)
Material: ABS
Power: AC100V~240V
Sine: 0~20MHz(20M), 0~60MHz(60M), 0~100MHz(100M)

Package List:
2 * BNC-Clip Cable
1 * Power Cable
1 * BNC-BNC Cable
1 * DDS Signal Generator
1 * USB Data Cable
