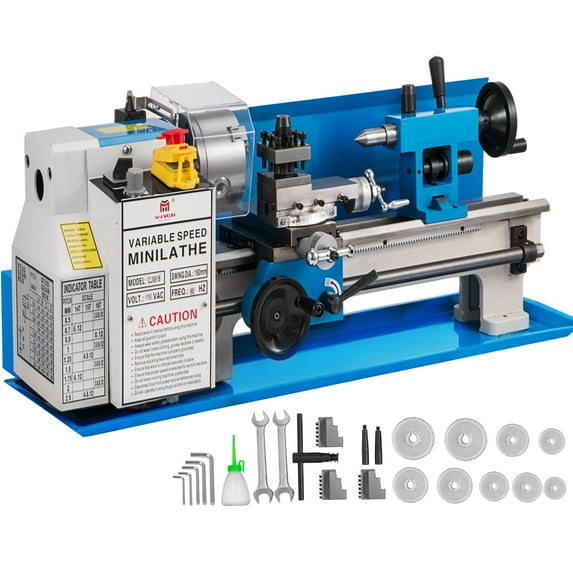

VEVOR 538465264, 7 in X 14 in Mini Metal Lathe 550 W 0.75 HP 2250 RPM

Brand Introduction

VEVORbrand is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVORbrand is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVORbrand has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVORbrand?
    1.Tough Quality Assurance
    2.Incredibly Low Prices
    3.Fast & Secure Delivery
    4.30-Day Free Returns
    5.24/7 Professional Customer Service

Product Description

550W 7" X 14" Variable-speed Metal Lathe With Nylon Gears
The 7 x 14 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 0-2250Rpm spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable. A movable lamp is free for you.
Heavy & Sturdy Machine
This lathe features an MT#2 taper and all the adjustment capability you need to work safely and accurately. It has a swing over bed of 7.09"(180 mm) and a swing over cross slide of 14"(350 mm), so you can handle large projects.
Infinitely Variable Speeds
Variable speed from 0-2250 Rpm. The feed speed can be adjusted according to the requirements of different workpieces. This metal lathe includes a large through-hole shaft to avoid inconvenience while working long pieces.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm.
Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 350mm(13.78").
Wide Applications
This lath is suitable for processing jobs, like counter face turning drilling, threading and cutting jobs on materials made up of round bar.

Specifications

Power of Motor: 550W DC Single Phase
Spindle Speed: 0-2250 RPM
Swing Over Bed: 180 mm (7.09")
Swing Over Cross Slide: 110 mm
Chuck Diameter: 100 mm (3.94")
Centers Distance: 350 mm (13.78")
Spindle Bore: 21 mm (0.83")
Spindle Taper: MT3
Tailstock Taper: MT2
Cross Slide Travel: 65 mm (2.53")
Top Slide Travel: 35 mm (1.36")
Spindle Accuracy: 0.01 mm
Inch Thread: 12-52 T.P.I
Metric Thread: 0.5-2.5 mm

Package Content

1 x Mini Metal Lathe
3 x Chuck Jaw
1 x Lathe Center
1 x Chuck Wrench
2 x Wrench
1 x Oil Can
5 x Hex Wrench
9 x Plastic Nylon Gear
2 x Handle
4 x Rubber Feet
4 x Screws
1 x Tool Box
