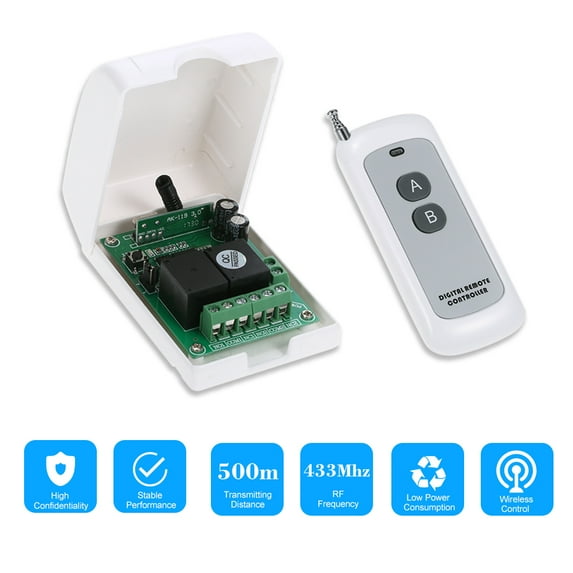

Shinysix Remote Switch,DC 2CH Code RF DC 2CH Switch 500M RF Remote Remote Switch Remote Switch 500M RF Remote Switch 500M Switch Relay RF Universal Remote Switch RF Remote 1527

Smart Home 433Mhz RF DC 12V 2CH Learning Code Wireless Remote Control Switch Relay Receiver Transmitter Universal Remote Switch System and Long Range 500M RF Transmitter Remote Controls 1527: *It can connect to the electronic control lock, light, fan, window, curtain, motor, car, lifting appliance, motor control, lifter control or other appliances with AC85V-250V or DC12V. So that it can remote unlock the door, close the light, open or close the curtain, etc.you can switch to momentary, toggle, latching three modes as you need.*This switch can learn 1527 coding remote controls.it can work with any remote control with the same frequency, so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the receiver is OK.)*The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.*One/several transmitters can control one/several receivers simultaneously.*You can turn on/off the receiver with transmitter(remote control) from any place within a reliable distance (500m open area). (The wireless RF signal can pass through walls, floors and doors.)*Very convenient to use, simple wiring diagram connection way.*Support remote controllers to 16 pieces.


Latched: (Press -> On, Press other button -> Off)
Momentary: (Press and hold->On, Release->Off)
Fuse Box Size: 8.6*6.1*2.8cm/3.39*2.4*1.1in
Standby Current: ≤10mA
Transmitting distance: 500m (open area)
Receiver Board Size: Approx. 7.1*5.1*2.2cm/2.79*2*0.86in
Specifications:
Input Power: DC12V
Remote control storage: to 16PCS
Working mode: Momentary, Toggle, Latching
Wiring type: fixed terminal
Output Power: DC/AC Optional
Working Temperature: -10℃+60℃
Supporting Remote Control Type: learning code (1527 chip)
Max. Working Current: 10A
Channel: 2CH
Output Terminal: NO , NC , COM
RF Frequency: 433MHz
Receive sensitivity: ≤-105dBm
Remote Control battery: 1*12V 23A (not included)
Toggle: (Press->On, Press again->Off)


Package Size: Approx. 15*11.5*3cm/5.9*4.53*1.18in
Package Information:

Package Weight: Approx. 101g/3.56oz

Package List:
1* Remote Control
1* Receiver Board
1* Fuse Box
