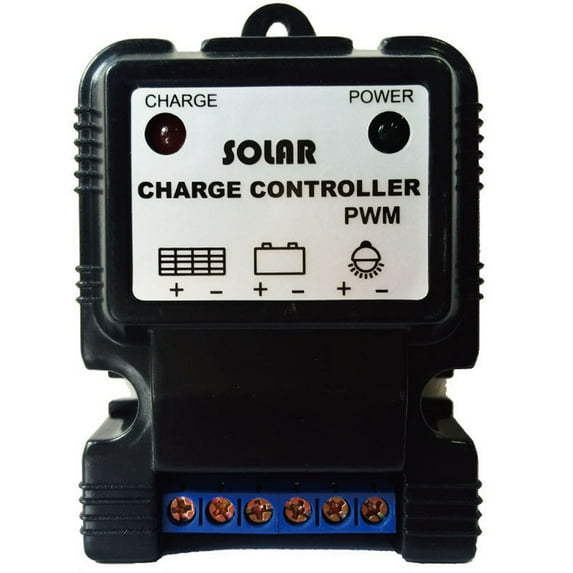

Solar Panel Battery Regulator Charge Controller PWM 6V 12V 3A Safe Regulator

Solar Panel Battery Regulator Charge Controller PWM 6V 12V 3A Safe Regulator

Features:

* Equipped with overcharge, overdischarge, short circuit, overload, and reverse connection protection devices, the solar charger controller ensures safe and reliable operation.

* Utilizing battery discharge rate characteristics for accurate discharge control, this energy controller regulator is a practical tool that meets various job requirements.

* The PWM main charging circuit of tandem type significantly improves the charging efficiency, allowing for faster and smoother completion of tasks.

* The LED indicator displays real-time battery status, providing convenient information and ensuring timely charging.

* Three operating modes are available: normally open mode, pure light control mode, and light control plus timing mode, offering flexibility for different application scenarios.

Specifications:

*Product Name:Solar Panel Battery Regulator Charge Controller PWM 6V 12V 3A Safe Regulator

*Material:plastic

*Size:53.4 * 68.6 *22mm

*Color:black

*Solar panel power: ≤18W/≤36W

*Rated charging current: 3A

*Rated discharge current: 3A

*System voltage: 12V

*Overload, short circuit protection:≥ 3 times rated current short circuit protection action,1.5 times rated current delay 5 minutes off, 5 minutes after automatic recovery

*No-load current: ≤ 6mA (measured at nominal value)

*Voltage drop of charging loop: ≤0.7 V ±- 1%

*Discharge circuit voltage drop: ≤0.1 V ± - 1%

*Overvoltage protection: 8.3V ± 1%/ 16.5V ± 1%

*Overvoltage recovery: 7.5V± 1% / 15.0V ± 1%

*Overdischarge protection: 5.4V ± 1% /10.8V± 1%

*Overdischarge recovery: 6.4V ±1% /12.8V±1%

*Lift charge: 7.4V ± 1% /14.8V± 1%

*Balanced charging: 7.2V± 1% / 14.4V ±1%

*Float charging: 6.9V ±1% / 13.8V ±1%

*Charge return: 6.6V ±1% / 13.2V ±1%

*Daytime identification voltage: 3.5 V±1% / 7.0V±1%

*Night recognition voltage: 1.5 V± 1% /3. 0V± 1%

*Protection level: IP30

*Operating temperature: -20℃~55℃

Package Content:

1 x Solar Controller

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
